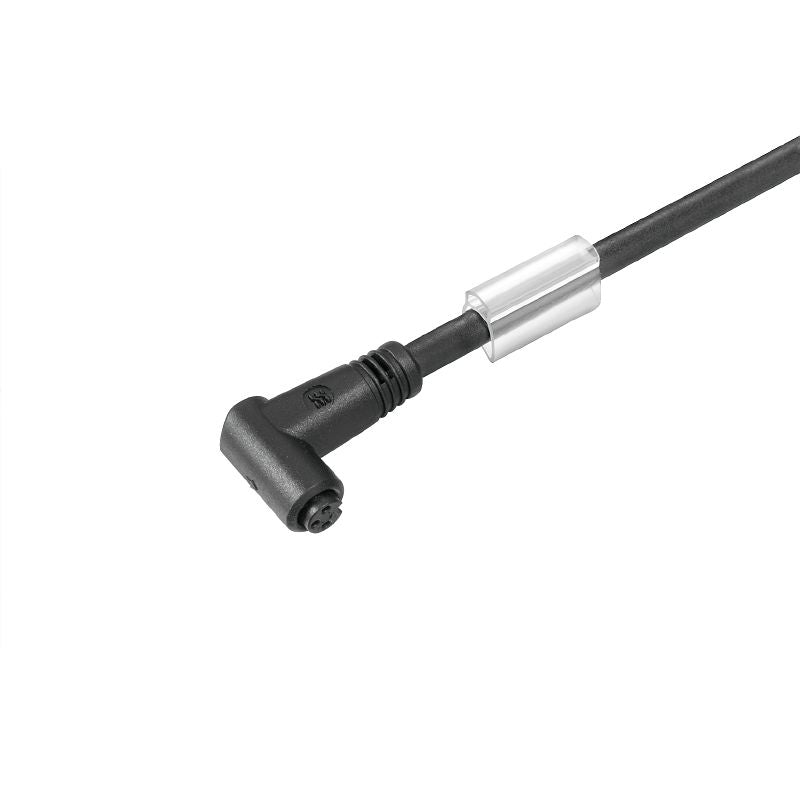

1948741000 - 10m M8 Connector Sensor/Actuator Cable, 4 Poles, Angled

1948741000 - 10m M8 Connector Sensor/Actuator Cable, 4 Poles, Angled

SKU: SKU: 1948741000 Download PDF

Variant:
  • 1948741000 - 10m M8 Connector Sensor/Actuator Cable, 4 Poles, Angled
Regular price Now $14.10
Regular price BEFORE   $0.00 Sale price Now $14.10
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced sensor/actuator component, featuring an M8 connector designed for seamless integration This cable, measuring 10 meters in length, boasts 4 poles and an angled socket configuration Please note that this product does not come with shielding or an LED indicator Crafted with a durable PVC sheath containing halogens, it ensures reliable performance for your applications.

Features and Benefits:

    •PVC sheath material.

    •Halogen-containing.

    •Angle socket configuration.

    •No shielding.

    •No LED indicator.

Specifications:

 Cable length 10 m
 Core cross-section 0.25 mm²
 Outer diameter 4.8 mm ± 0.2 mm
 Number of poles 4
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 30 V
 Insulation resistance 10^8 Ω
 Protection degree IP65
 Housing main material PUR
