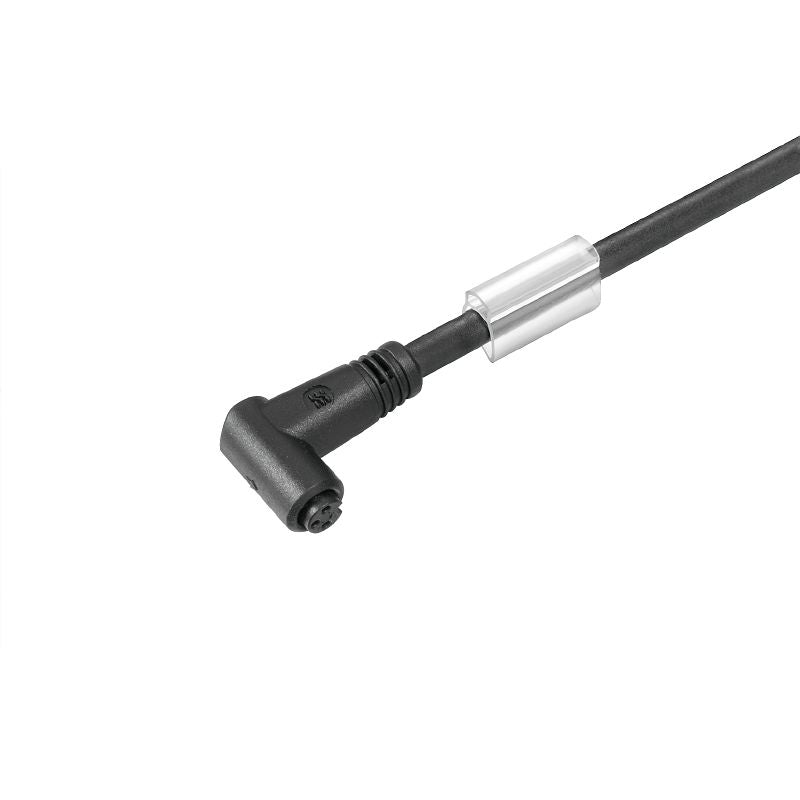

1948720500 - 5m PVC Sensor/Actuator Cable, 3 Poles, Angled Socket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIL-M8BWR-3-50V, a reliable addition to your sensor and actuator collection This product features a generous cable length of 5 meters, providing ample reach for your applications The configuration includes an angular socket at one end, designed without a connector, ensuring seamless integration into your setup Crafted from PVC with halogen content, it ensures durability and performance.

This sensor is not shielded and comes with three numbered poles for easy identification .

Features and Benefits:

•RoHS compliant with exemptions.

•Temperature rated from -30 to 80 °C stationary and -5 to 80 °C when in motion.

•Plugging cycles rated for a minimum of 100.

•IP65 protection degree when secured.

•A-coded connection with M12 / M8 threads.

•Gold-plated contact surfaces.

•Black sheath material with PVC insulation.

Specifications:
