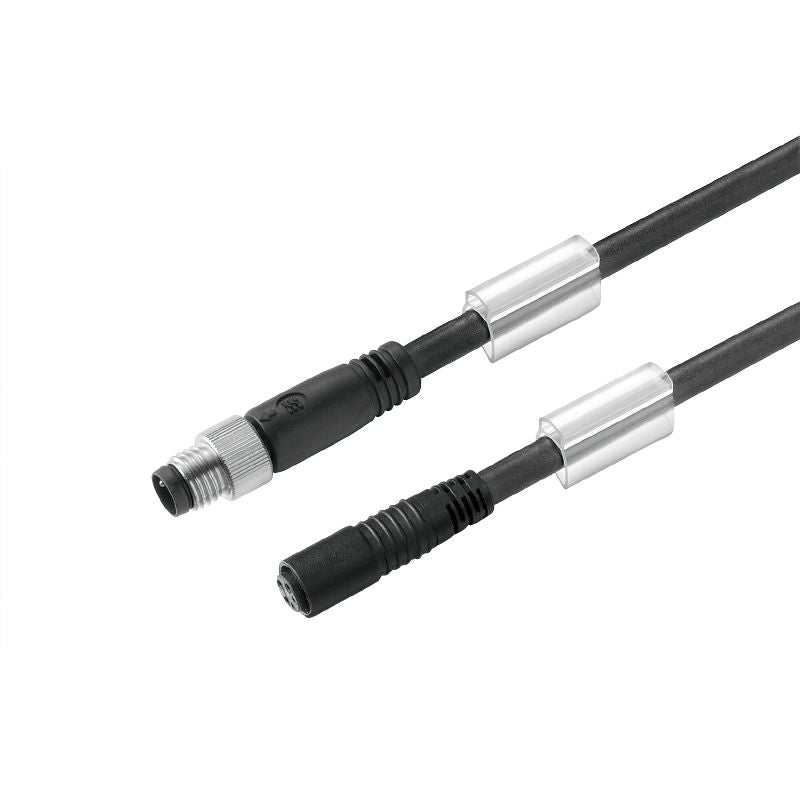

1948681000 - 10m A-coded PVC Actuator Connection Cable, 4-pin, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable 10-meter connection cable, ideal for sensor and actuator applications This cable boasts a 4-pin design with straight socket connections, making it versatile for various setups Crafted from durable PVC, it meets RoHS standards for safe use The A-coded connector features a gold-plated contact surface for enhanced conductivity With an outer diameter of 48 mm, this cable is not customizable in length.

It operates effectively in stationary conditions within a temperature range of -30 to 80 degrees Celsius, and between -5 to 80 degrees Celsius when in motion While it's not shielded and is halogen-free, this cable can handle a nominal voltage of 30 V and support a current up to 4 A, making it a dependable choice for your connectivity needs.

Features and Benefits:

•Gold-plated contact surface.

•A-coded connector.

•Outer diameter of 4.8 mm.

•Temperature range for stationary use: -30 to 80 °C.

•Temperature range for moving use: -5 to 80 °C.

•IP65 protection degree when screwed in.

•Nominal current rating of 4 A.

Specifications:
