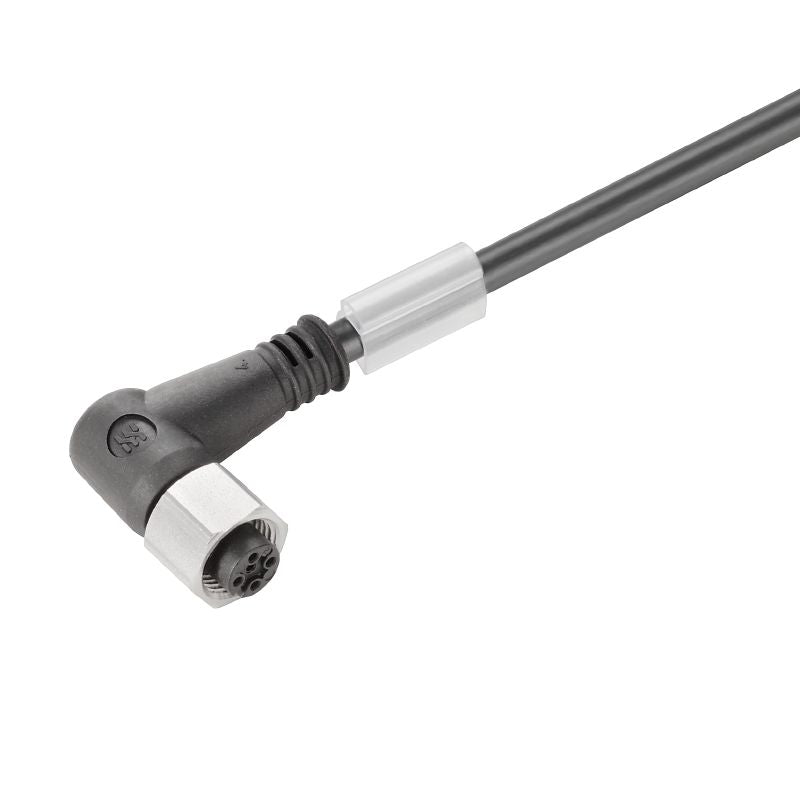

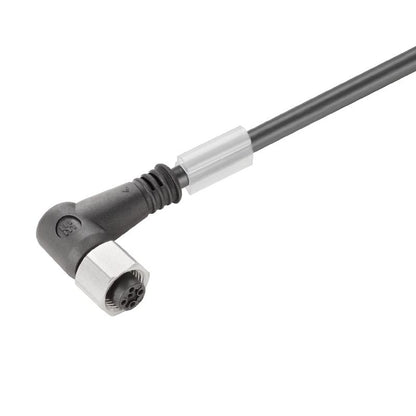

1939370150 - 1.5m M12 3-Pole Sensor Cable, PUR Sheath

1939370150 - 1.5m M12 3-Pole Sensor Cable, PUR Sheath

SKU: SKU: 1939370150

Variant:
  • 1939370150 - 1.5m M12 3-Pole Sensor Cable, PUR Sheath
Regular price Now $9.88
Regular price BEFORE   $0.00 Sale price Now $9.88
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile sensor/actuator cable that measures 15 meters in length This cable features an M12 connector with 3 poles at one end, while the other end remains unconnected Designed with an angled socket, this cable is not shielded and does not come with an LED indicator Its robust sheath is crafted from halogen-free PUR material, ensuring safety and reliability in various applications.

Features and Benefits:

    •Sensor/actuator line.

    •Angled socket.

    •Not shielded.

    •Halogen-free.

Specifications:

 Diameter 3.8 mm
 Cable length 1.5 m
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Resistance to oils Yes
 Sheath material PUR
 IP protection degree IP65/IP66/IP67/IP68
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Plugging cycles ≥ 100
