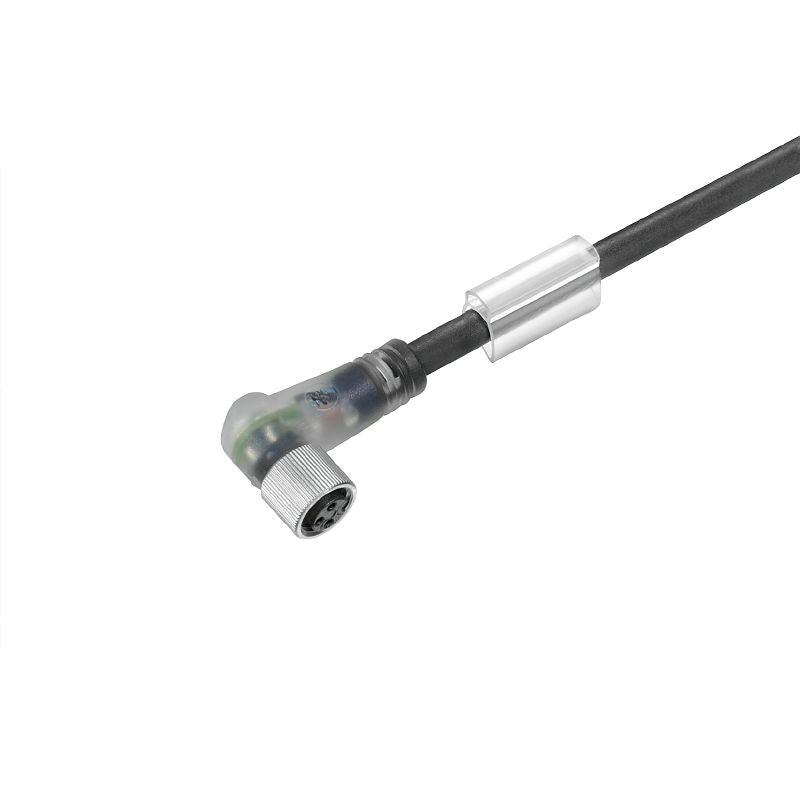

1927350150 - 1.5m M8/M12 Sensor/Actuator Cable with LED Indicator

1927350150 - 1.5m M8/M12 Sensor/Actuator Cable with LED Indicator

SKU: SKU: 1927350150

Variant:
  • 1927350150 - 1.5m M8/M12 Sensor/Actuator Cable with LED Indicator
Regular price Now $9.61
Regular price BEFORE   $0.00 Sale price Now $9.61
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The SAIL-M8BW-3L15V cable is expertly crafted for sensor and actuator applications, measuring 15 meters in length It features an angled socket and is free from shielding, making it versatile for various uses An LED indicator enhances functionality, while the PVC sheath with halogen content ensures durability This connector supports both M12 and M8 standards, featuring a three-pole design for reliable connectivity.

Features and Benefits:

    •Angle design for socket.

    •LED indicator integrated.

    •PVC sheath material.

    •Halogen content present.

Specifications:

 Cable length 1.5 m
 Number of poles 3
 Core cross-section 0.25 mm²
 Outside diameter 4.5 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 24 V
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68
 Temperature range (moving) -5...80 °C
 Temperature range (stationary) -30...80 °C
 Housing main material PUR
 Threaded ring material Brass, nickel-plated
 Plugging cycles ≥ 100
