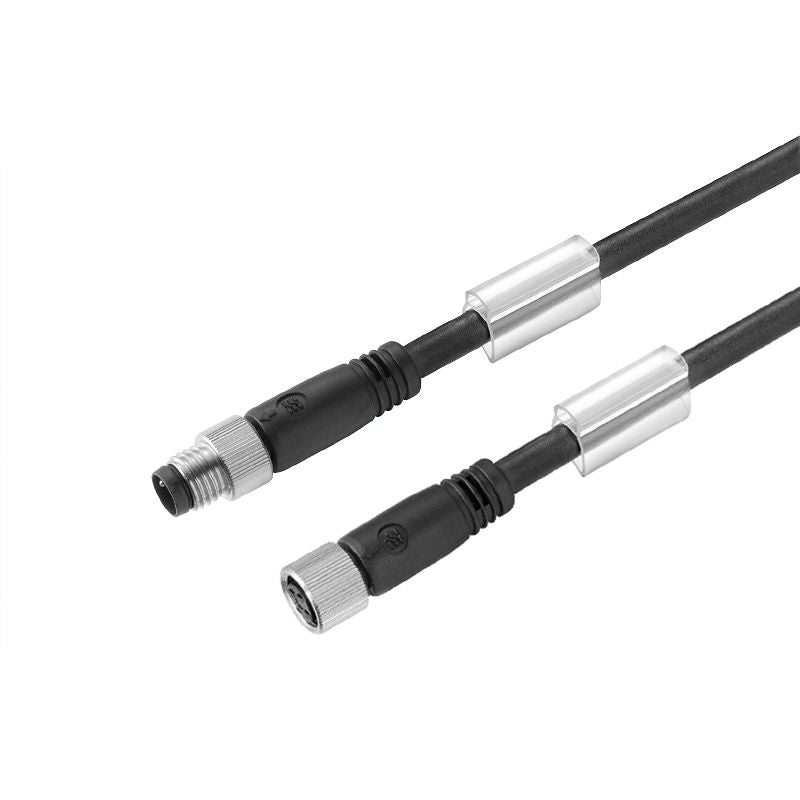

1927150150 - 1.5m M8 Connector Cable, 3-Pole, Halogen-Free PVC

1927150150 - 1.5m M8 Connector Cable, 3-Pole, Halogen-Free PVC

SKU: SKU: 1927150150 Download PDF

Variant:
  • 1927150150 - 1.5m M8 Connector Cable, 3-Pole, Halogen-Free PVC
Regular price Now $10.83
Regular price BEFORE   $0.00 Sale price Now $10.83
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our M8 connector cable, designed specifically for sensor and actuator applications This cable features a practical length of 15 meters and incorporates three poles Made from halogen-free PVC, this durable sheath offers safety and reliability without the inclusion of a shield or LED indicators, making it an ideal choice for your connectivity needs.

Features and Benefits:

    •General approvals include compliance with ROHS and UL file number E307231.

    •LED: No.

    •Halogen-free.

    •Suitable for various applications including sensor and actuator connections.

Specifications:

 Cable length 1.5 m
 Core cross-section 0.25 mm²
 Outer diameter 4.5 mm ± 0.2 mm
 Number of poles 3
 Sheath material PVC
 Temperature range (moving) -5...80 °C
 Temperature range (stationary) -30...80 °C
 Nominal current 4 A
 Nominal voltage 60 V
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68, IP69
 Threaded ring material Brass, nickel-plated
 Tightening torque M8: 0.5 - 0.6 Nm
