1906560300 - 3m M8 Sensor/Actuator Cable, 3-Pole, Halogen-Free

1906560300 - 3m M8 Sensor/Actuator Cable, 3-Pole, Halogen-Free

SKU: SKU: 1906560300   Download PDF

Select a Variant:
  • 1906560300 - 3m M8 Sensor/Actuator Cable, 3-Pole, Halogen-Free
Qty:
Regular price Now $22.80   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $22.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

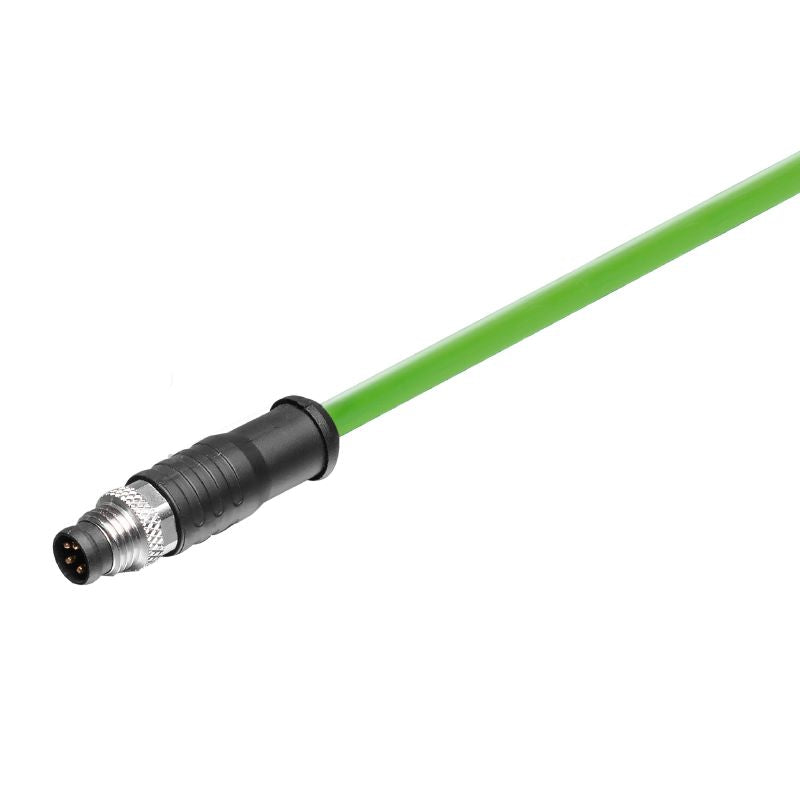

Introducing a 3-meter sensor/actuator line equipped with a reliable M8 connector featuring three poles This straight cable is expertly designed with shielding for enhanced protection, ensuring optimal performance Made from durable PUR sheath material, it is halogen-free and adheres to all necessary industry standards, promising a safe and efficient solution for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS and REACH standards.

    •Flexible design appropriate for various electrical applications.

    •High performance with a bending cycle capacity of 2 million.

    •Shielded construction for reliable performance in harsh environments.

    •Durable with a temperature range of -40 to 80 °C.

    •Gold-plated contacts for excellent conductivity.

Specifications:

 Cable length 3 m
 Number of poles 3
 Outer diameter 4.8 mm ± 0.2 mm
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 60 V
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68
 Temperature range of housing -25…+85 °C
 Connection thread M8
 Plugging cycles ≥ 100
 AF size 9 mm
 Speed 100 m/s
 Sheath material PUR
