1879711500 - 15m PUR Cable with 12-Pole Socket, Non-Shielded

1879711500 - 15m PUR Cable with 12-Pole Socket, Non-Shielded

SKU: SKU: 1879711500

Select a Variant:
  • 1879711500 - 15m PUR Cable with 12-Pole Socket, Non-Shielded
Qty:
Regular price Now $56.90   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $56.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the functionality of this sensor and actuator component featuring a 12-pole female socket With a length of 15 meters, this cable is unencumbered by a connector, making it versatile for various applications Constructed from durable PUR, it is halogen-free and compliant with RoHS regulations, with certain exemptions Please note, the cable lacks shielding and does not include an LED indicator.

Features and Benefits:

    •Number of poles: 12.

    •Length: 15 m.

    •Female socket type.

    •Sheath material: PUR.

    •No shielding present.

    •Compliant with RoHS standards.

    •Suitable for cable carriers.

Specifications:

 Cable length 15 m
 Outer diameter 5.6 mm ± 0.2 mm
 Nominal current 1.5 A
 Nominal voltage 30 V
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Protection degree IP67 when screwed in, IP65, IP66
 Insulation resistance 10^8 Ω
 Bending cycles 1 million
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter

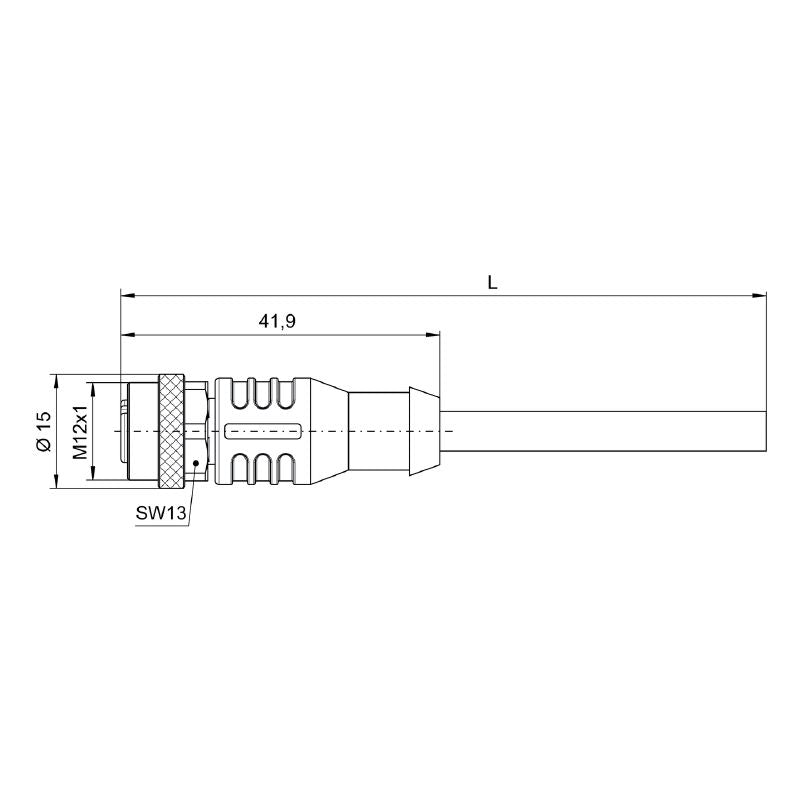

 Plug type M12, A-coded, female contact, straight
 Threaded ring material Brass, nickel-plated
