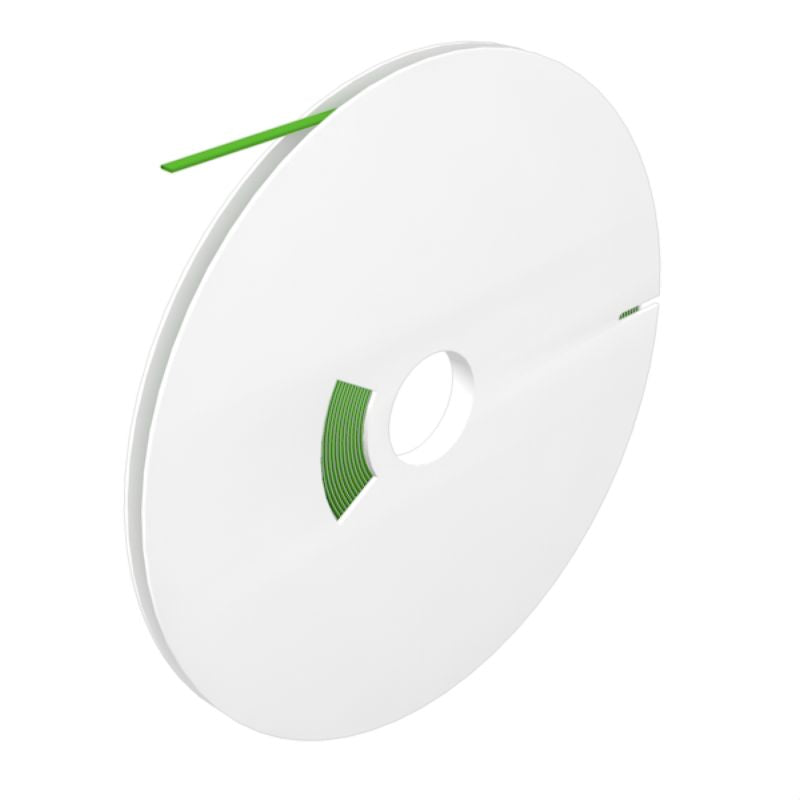

1562950000 - Green Polyolefin Cable Marking Tape, 1.6-3.2mm, 30m Roll

SKU: SKU: 1562950000 Download PDF

Variant:

1562950000 - Green Polyolefin Cable Marking Tape, 1.6-3.2mm, 30m Roll

Now $114.04

~~BEFORE $0.00~~ Now $114.04

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HSS-HF 16-32 EL G30M, a specialized solution for marking conductors and cables within the diameter range of 16 mm to 32 mm This product adheres to RoHS standards and is free from halogen, guaranteeing compliance without exceptions Constructed from durable polyolefin, it is available in a vibrant green color The roll boasts an impressive length of 30,000 mm and weighs 233 g, making it a practical choice for your marking needs.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Made from polyolefin.

•Green color.

•External roll holder 1302920000 necessary for use.

Specifications:

Operating temperature range	-55...105 °C
Conductor O.D. (max)	3.2 mm
Conductor O.D. (min)	1.6 mm
Conductor cross-section (max)	1.5 mm²
Conductor cross-section (min)	0.5 mm²
Cross-section for connected wire	0.5 - 1.5 mm²
Rate of shrinkage	2:1
Recommended shrinking temperature	90 °C
Number per roll	1
Depth	0.7 mm
Width	5.6 mm
Length	30,000 mm
