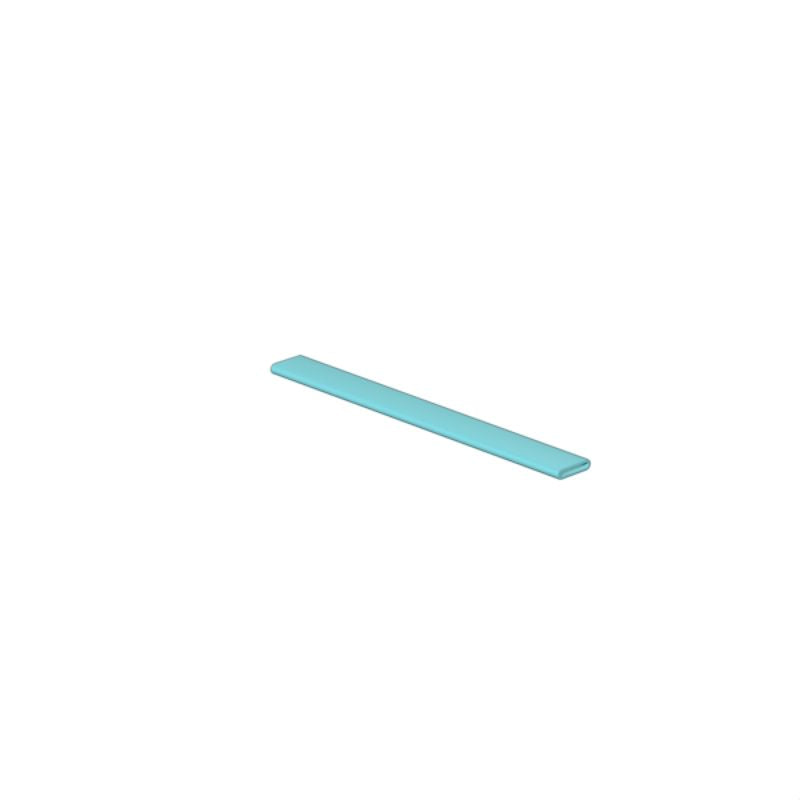

1562850000 - Blue 1.6-3.2mm Cable Markers for Conductor Printing

SKU: SKU: 1562850000 Download PDF

Select a Variant:

1562850000 - Blue 1.6-3.2mm Cable Markers for Conductor Printing

SET THE QTY:

Now $114.04 Web pricing policy

~~BEFORE $0.00~~ Now $114.04 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the HSS-HF 16-32 EL B30M, your go-to solution for marking conductors and cables sized between 16 mm and 32 mm Adhering to RoHS standards, this eco-friendly option is available in an eye-catching blue hue It performs reliably in a wide temperature range of -55 to 105 degrees Celsius Compatible with both THM MULTIMARK and THM MULTIMARK PLUS printers, this polyolefin-based marker boasts a 2:1 shrinkage rate, making it versatile for a variety of applications.

Features and Benefits:

•Compliant with RoHS without exemption.

•Rated for use from -55 to 105 °C.

•Blue color for easy identification.

•Max conductor cross-section of 1.5 mm².

•Min conductor cross-section of 0.5 mm².

•Recommended shrinking temperature of 90 °C.

•Conductor and cable marking.

Specifications:

Depth	0.7 mm
Width	5.6 mm
Length	30,000 mm
Conductor O.D.	1.6 - 3.2 mm
Cross-section for connected wire	0.5 - 1.5 mm²
Basic material	Polyolefine
Halogen	No
Rate of shrinkage	2:1
Number per roll	1
Printed characters	without
Type of printing	neutral
Operating temperature range	-55...105 °C
GTIN (EAN)	4050118367546
Important note	External roll holder 1302920000 necessary
Classifications	{'ETIM': 'EC001530', 'ECLASS': '27-40-04-01'}
