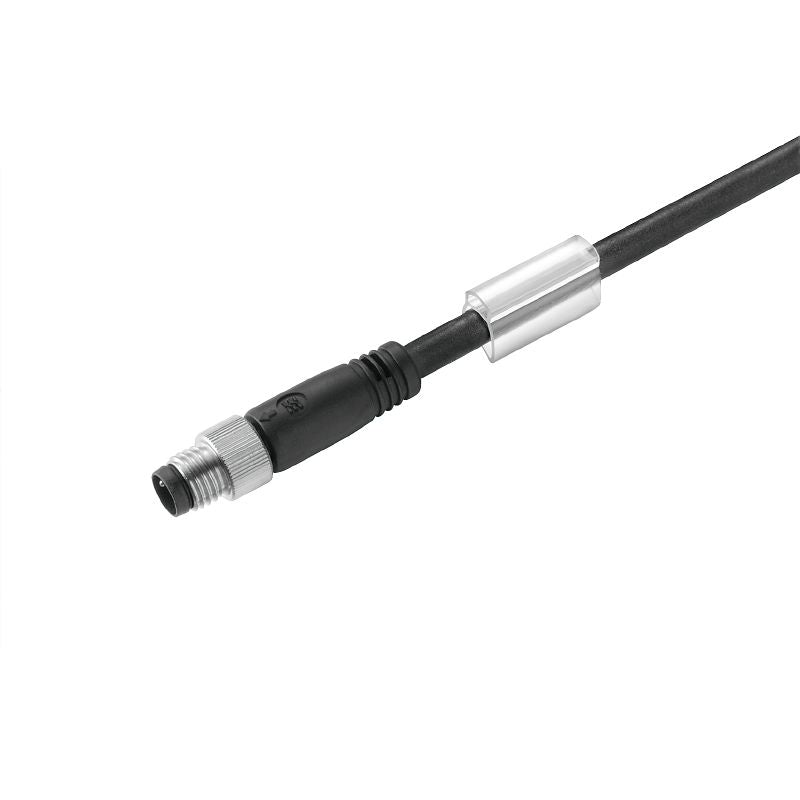

1555330500 - 5m PUR Sensor/Actuator Cable, 8 Poles, Straight Connection

1555330500 - 5m PUR Sensor/Actuator Cable, 8 Poles, Straight Connection

SKU: SKU: 1555330500

Select a Variant:
  • 1555330500 - 5m PUR Sensor/Actuator Cable, 8 Poles, Straight Connection
Qty:
Regular price Now $24.75   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $24.75 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M8G-8-50U sensor and actuator cable, measuring an impressive 5 meters in length and equipped with 8 poles for robust connectivity This cable features a straight connection design and comes without a connector at one end Crafted from halogen-free PUR material, it is not shielded, making it suitable for various industrial applications Additionally, the product complies with RoHS standards, ensuring its environmentally friendly credentials.

Features and Benefits:

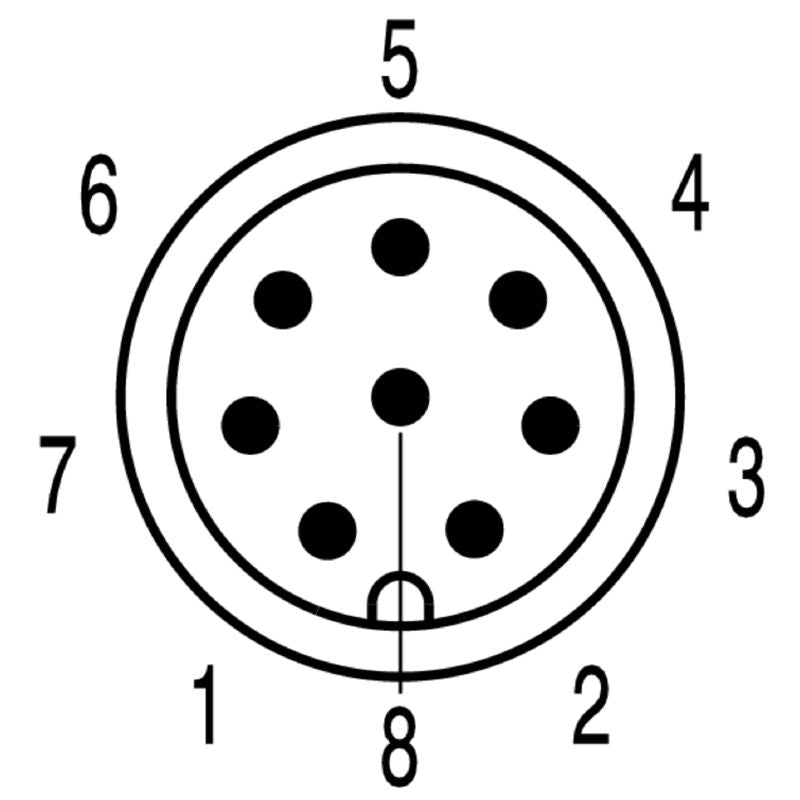

    •Number of poles: 8.

    •Pin straight configuration.

    •Net weight: 208.56 g.

    •Bending cycles: 1 million.

    •Temperature range for moving: -25 to 80 °C.

    •Temperature range for stationary: -40 to 80 °C.

    •Protection degree: IP67 when screwed in, IP65 and IP66 available.

    •Gold-plated contact surface.

    •Suitable for cable carriers.

Specifications:

 Cable length 5 m
 Core cross-section 0.25 mm²
 Outside diameter 5.9 mm ± 0.2 mm
 Nominal current 2 A
 Nominal voltage 30 V
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Pollution severity 3
 Torsion resistance 180 °/m
 Connector standard IEC 61076-2-104
 Sheath material PUR
