1534740000 - Automatic Cable Stripper for 20-120mm Lengths
1534740000 - Automatic Cable Stripper for 20-120mm Lengths
SKU: SKU: 1534740000 Download PDF
- 1534740000 - Automatic Cable Stripper for 20-120mm Lengths
- 1534740000 - Automatic Cable Stripper for 20-120mm Lengths
Couldn't load pickup availability
Description:

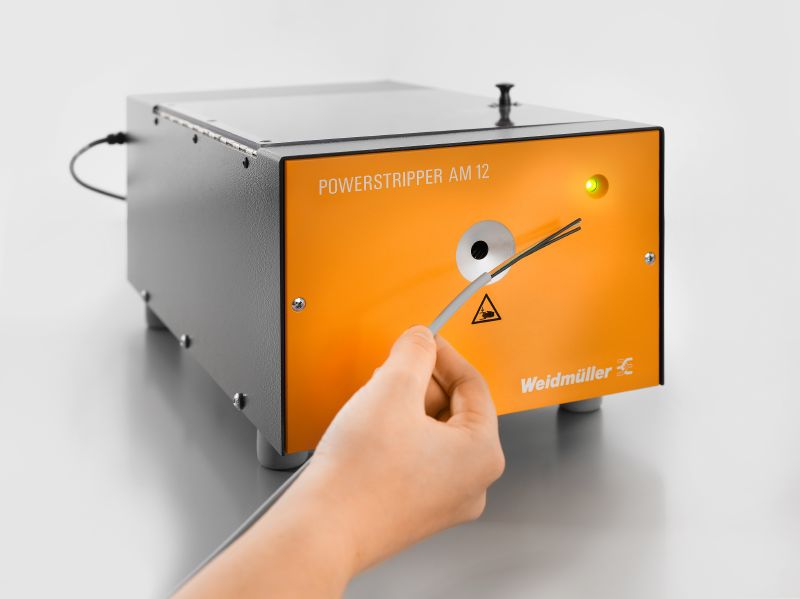

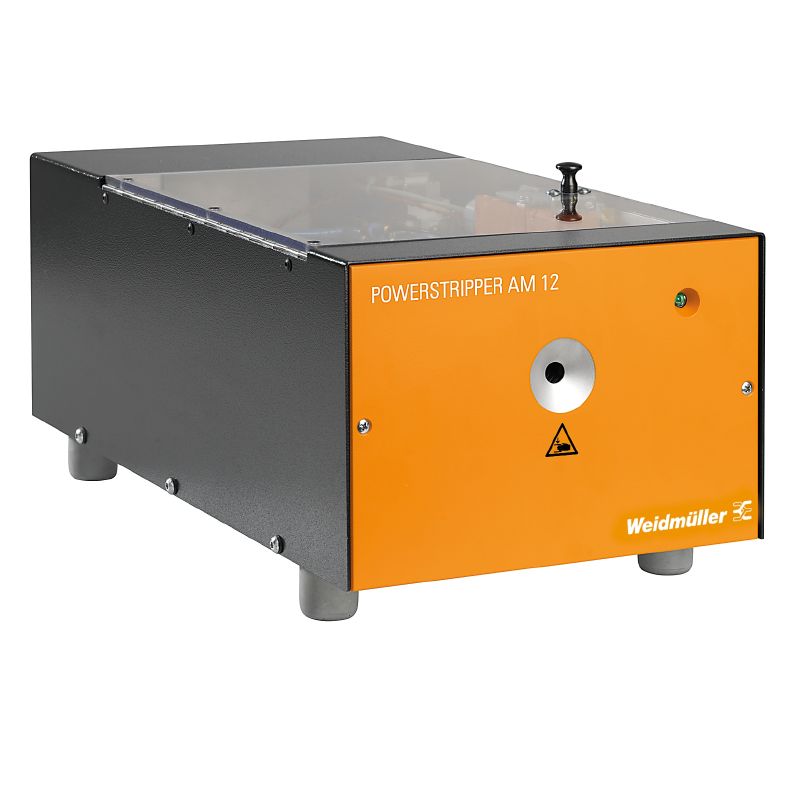

Introducing the POWERSTRIPPER AM 12, an innovative automatic stripping tool engineered for optimal cable management This device adheres to RoHS standards and operates via a compressed-air connection at a pressure range of 5 to 55 bar It boasts an electropneumatic drive mechanism, requiring an electrical supply of 100 to 240 V at a frequency of 50/60 Hz, while consuming 16 VA of power The POWERSTRIPPER AM 12 can strip cables with lengths varying from 20 mm to 120 mm, allowing for a maximum dismantling length of 120 mm.
Weighing in at 17,000 grams, this tool is also certified for compliance with specific RoHS exemptions, making it a reliable choice for your cable stripping needs.
Features and Benefits:
•Compliant with RoHS with specific exemptions.
•Uses electropneumatic drive for automatic stripping.
•Supports a wide range of environmental conditions.
Specifications:
| Depth | 230 mm |
| Height | 520 mm |
| Width | 254 mm |
| Insertion length | 80 mm |
| Max. dismantling area | 11.9 |
| Max. dismantling length | 120 mm |
| Min. dismantling area | 3.5 mm |
| Min. dismantling length | 25 mm |
| Pull-off length | 20 - 120 mm |
| Pulse time | approx. 3 s |
| GTIN (EAN) | 4050118338409 |
