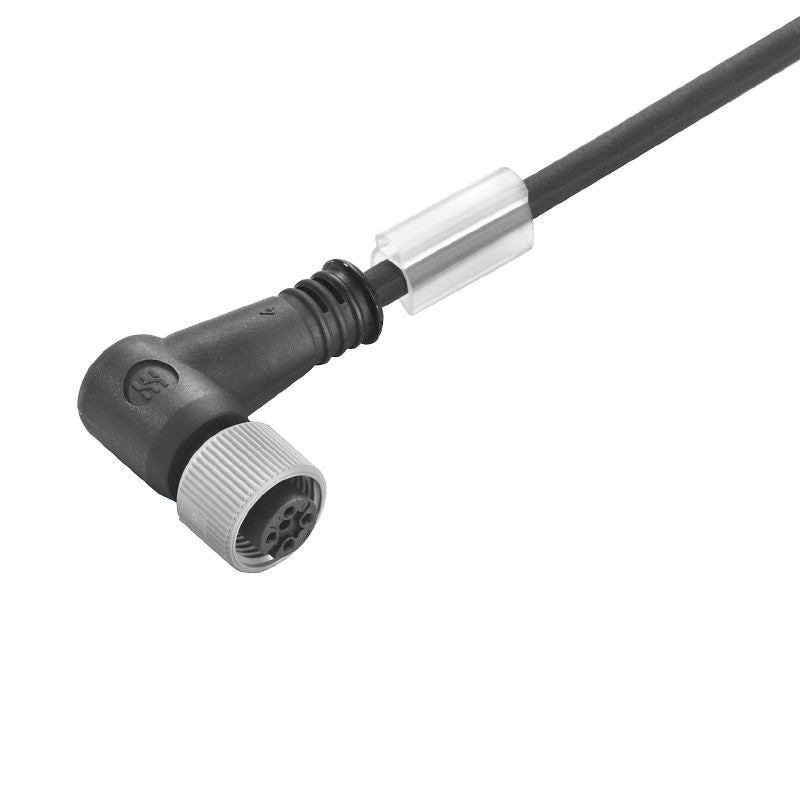

1465981000 - M12 10m Sensor/Actuator Cable, 3 Poles, Connector-less End

1465981000 - M12 10m Sensor/Actuator Cable, 3 Poles, Connector-less End

SKU: SKU: 1465981000

Variant:
  • 1465981000 - M12 10m Sensor/Actuator Cable, 3 Poles, Connector-less End
Regular price Now $12.47
Regular price BEFORE   $0.00 Sale price Now $12.47
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Explore the versatility of this sensor/actuator product, featuring a 10-meter length and three pole configuration Its angled socket design enhances ease of use, while the PVC sheath ensures it is halogen-free Please note that this model is unshielded and does not include an LED indicator It carries UL approval, certified with number E307231, assuring quality and safety.

Features and Benefits:

    •Available until 29.11.2025.

    •Net weight is 358 grams.

    •RoHS compliance with exemption criteria.

Specifications:

 Cable length 10 m
 Number of poles 3
 Outer diameter 4.9 mm ± 0.2 mm
 Sheath material PVC
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP65, IP66, IP67, IP68
 Insulation resistance 10^8 Ω
 Connection thread M12
 Plug left M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded
 Plug right free conductor end
