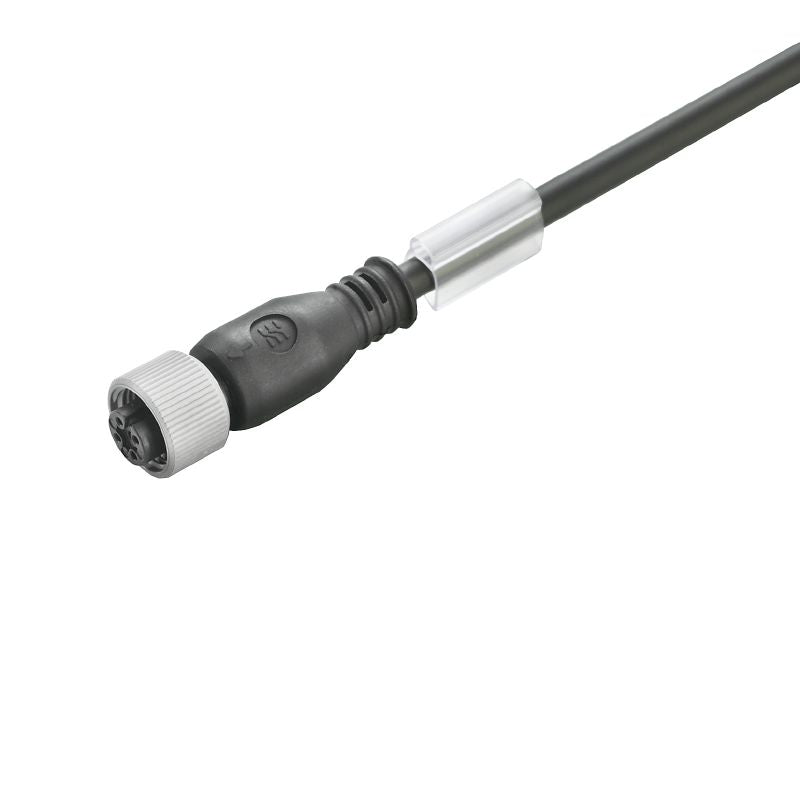

1465970150 - PVC 1.5m Sensor/Actuator Cable with 5 Poles

1465970150 - PVC 1.5m Sensor/Actuator Cable with 5 Poles

SKU: SKU: 1465970150

Variant:
  • 1465970150 - PVC 1.5m Sensor/Actuator Cable with 5 Poles
Regular price Now $7.97
Regular price BEFORE   $0.00 Sale price Now $7.97
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This versatile product is perfect for sensor and actuator applications, featuring a straight female socket at one end With a length of 15 meters, this cable is crafted from halogen-free PVC, ensuring environmental compliance with RoHS standards It includes five poles and boasts an insulation layer made of PVC The outer diameter measures 57 mm, with an allowable variation of ±02 mm Please note, this cable is not suited for cable carriers.

Features and Benefits:

    •Five poles for versatile connection.

    •Halogen-free sheath material for safer use.

    •Straight female socket configuration.

    •Not shielded, making it lightweight.

    •Meets RoHS compliance standards.

Specifications:

 Cable length 1.5 m
 Number of poles 5
 Outer diameter 5.7 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68
 Contact surface Gold-plated
 Housing main material PUR
 Threaded ring material Plastic
