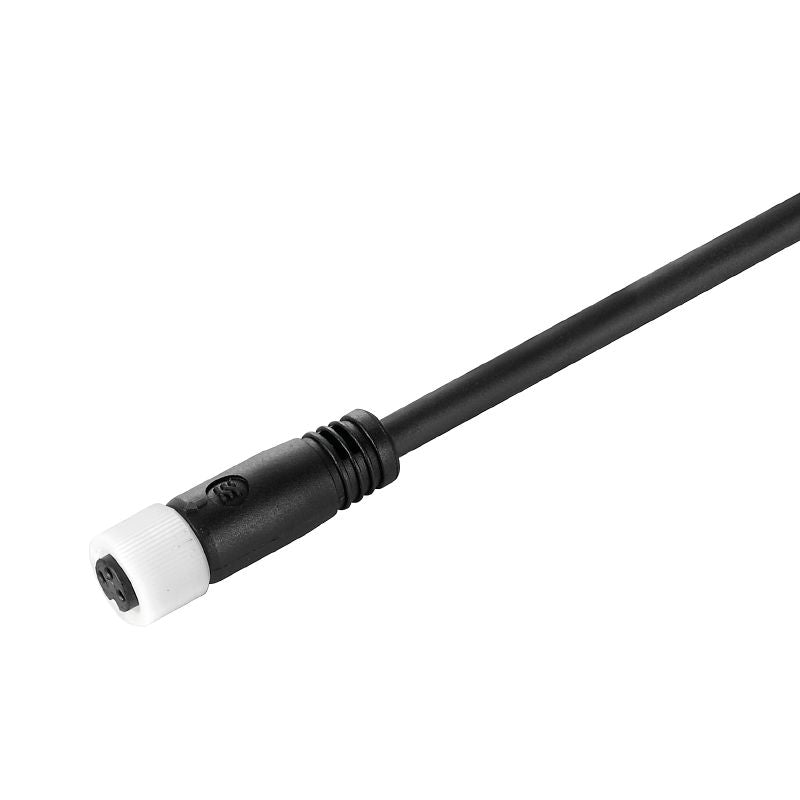

1465870300 - 3m PVC Sensor/Actuator Cable with Female Socket

1465870300 - 3m PVC Sensor/Actuator Cable with Female Socket

SKU: SKU: 1465870300

Variant:
  • 1465870300 - 3m PVC Sensor/Actuator Cable with Female Socket
Regular price Now $6.93
Regular price BEFORE   $0.00 Sale price Now $6.93
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this sensor/actuator component, designed with a female socket on one end and an open connection on the other Measuring 3 meters in length, this cable features 3 poles and is made from durable PVC material It is compliant with halogen regulations, making it a reliable choice Please note that this cable is unshielded and does not include an LED indicator, offering straightforward functionality for your projects.

Features and Benefits:

    •Non-shielded.

    •Contains no LED.

    •Sheath material: PVC.

    •Halogen-free compliant.

Specifications:

 Cable length 3 m

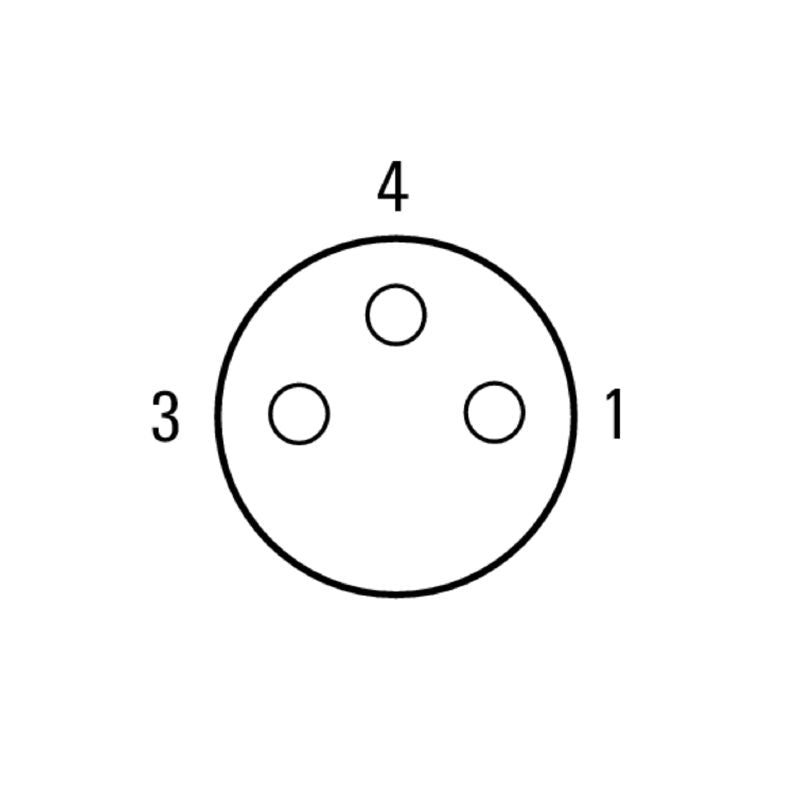

 Number of poles 3
 Core cross-section 0.25 mm²
 Outer diameter 4.5 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65, IP66, IP67, IP68
 Connection thread M12 / M8
 Coding A-coded
 Contact surface Gold-plated
