1463640002 - 0.2m PUR M12 X-Type Class EA System Cable

SKU: SKU: 1463640002 Download PDF

Select a Variant:

1463640002 - 0.2m PUR M12 X-Type Class EA System Cable

SET THE QTY:

Now $90.96 Web pricing policy

~~BEFORE $0.00~~ Now $90.96 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

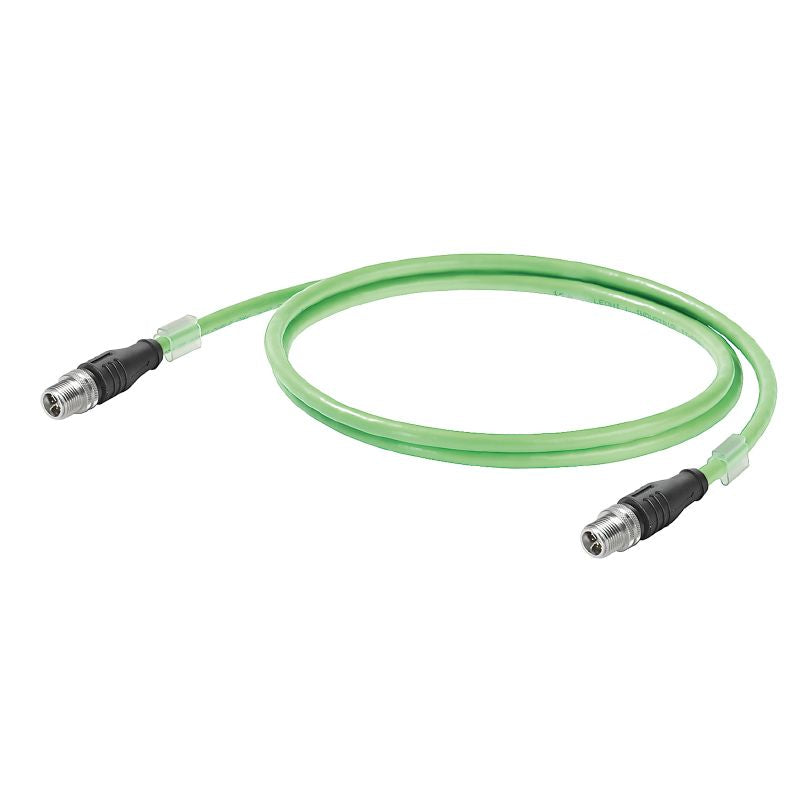

Introducing a durable system cable equipped with M12 X-type connectors on both ends, engineered to meet Class EA specifications in accordance with ISO/IEC 11801 2010 standards Crafted from high-quality PUR material, this robust cable boasts a length of 02 meters, making it ideal for demanding applications.

Features and Benefits:

•Halogen-free according to IEC 60754-1.

•Very good abrasion resistance.

•Impervious to smoke according to IEC 61034.

•Excellent resistance to oils in accordance with IEC 60811-2-1.

•Resistance to the spread of flame according to IEC 60332-1-2.

Specifications:

Length (m)	0.2
Category	Cat.6A / Class EA (ISO/IEC 11801 2010)
Characteristic impedance	100 ± 5 Ω at 100MHz
Loop resistance	290 Ω/km
Signal propagation time	5.2 ns/m
Test voltage	700 V rms, 50 Hz, 1 min
Transfer impedance	15 mΩ/m at 1 MHz; 10 mΩ/m at 10 MHz; 30 mΩ/m at 30 MHz
Storage temperature	-40 °C...80 °C
Operating temperature	-40 °C...80 °C
Installation temperature	-20 °C...60 °C
Sheath diameter (max)	6.7 mm
Sheath diameter (min)	6.1 mm
Wire material	Stranded tin-plated copper wire
Number of wires	8
Copper diameter	0.48 µm

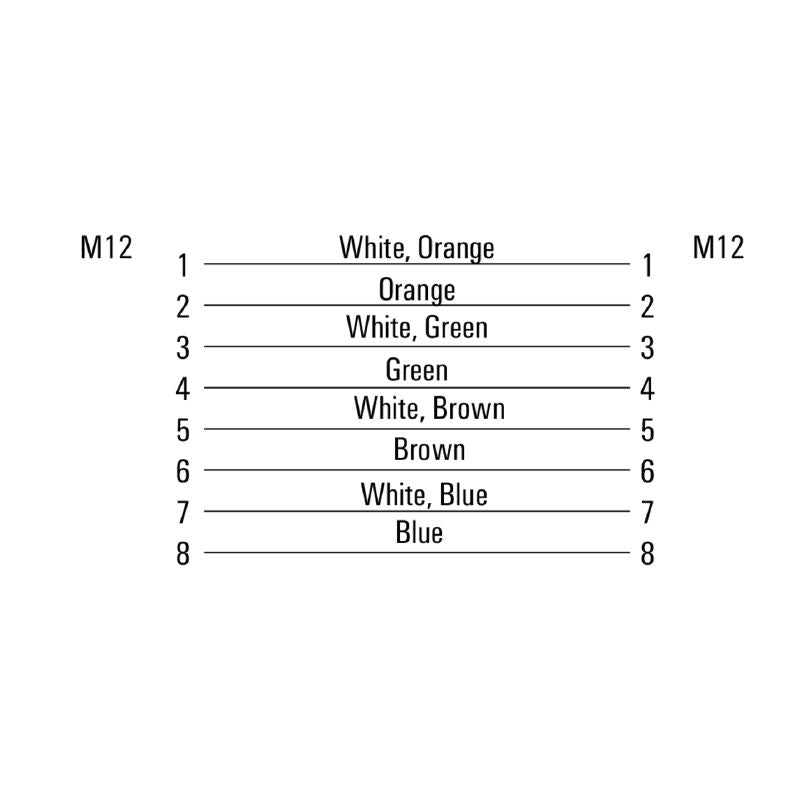

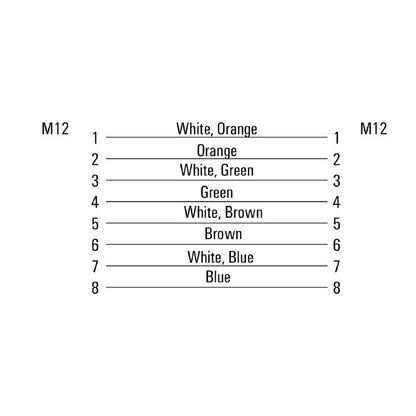

Wiring	EIA/TIA T568 B
Color	green (RAL 6018)
Sheathing color	green (RAL 6018)
Shielding	S/FTP
