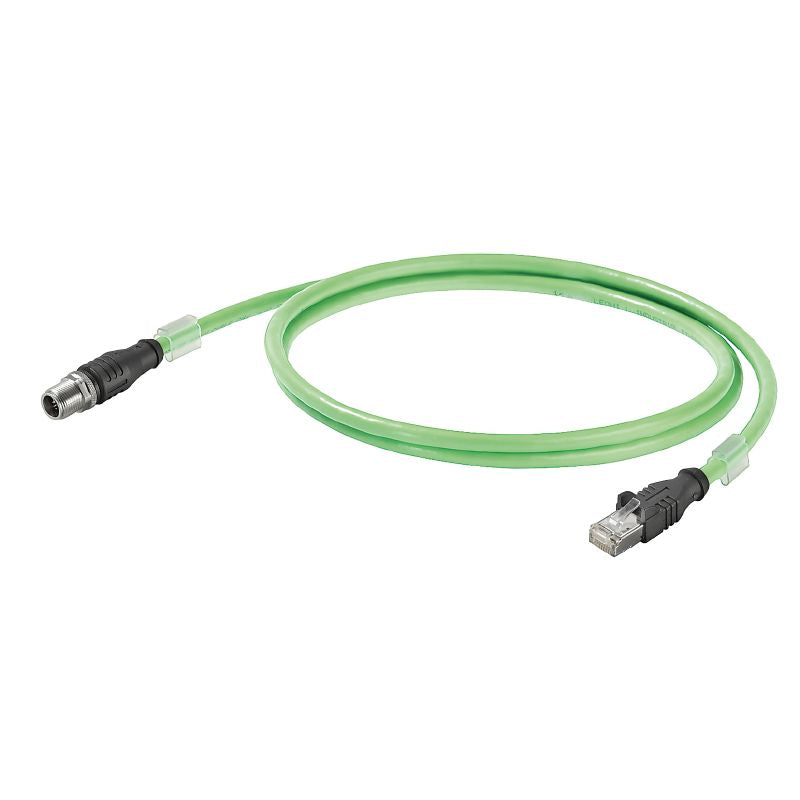

1457580010 - 1m PUR System Cable, RJ45 & M12 X-Type Connectors

1457580010 - 1m PUR System Cable, RJ45 & M12 X-Type Connectors

SKU: 1457580010   Download PDF

Select a Variant:
  • 1457580010 - 1m PUR System Cable, RJ45 & M12 X-Type Connectors
Qty:
Now $80.19   Web pricing policy
BEFORE   $0.00 Now $80.19 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a robust system cable measuring 1 meter in length, expertly equipped with an RJ45 connector rated at IP 20 and a straight male M12 X-type connector boasting an impressive IP 67 rating This cable adheres to Cat6 A / Class E A standards as outlined in ISO/IEC 11801 2010, ensuring top-notch performance Crafted from durable PUR material, it offers exceptional flexibility and resilience in a range of environments.

Features and Benefits:

    •Compliant with RoHS and contains a RoHS exemption for lead.

    •Insulation made from PE.

    •Cable structurally designed with twisted pairs.

    •Impervious to smoke according to IEC 61034.

    •Halogen-free as per IEC 60754-1.

    •S/FTP shielding for enhanced performance.

    •Very good abrasion resistance.

Specifications:

 Length 1 m
 Copper diameter 0.48 µm
 Number of wires 8
 Sheath diameter, max 6.7 mm
 Sheath diameter, min 6.1 mm
 Transmission rate 10 Gbit/s
 Category Cat.6 A / Class E A (ISO/IEC 11801 2010)
 Characteristic impedance 100 ± 5 Ω at 100MHz
 Loop resistance 290 Ω/km
 Signal propagation time 5.2 ns/m
 Test voltage: wire-wire-shield 700 V rms, 50 Hz, 1 min
 Transfer impedance 15 mΩ/m at 1 MHz, 10 mΩ/m at 10 MHz, 30 mΩ/m at 30 MHz
