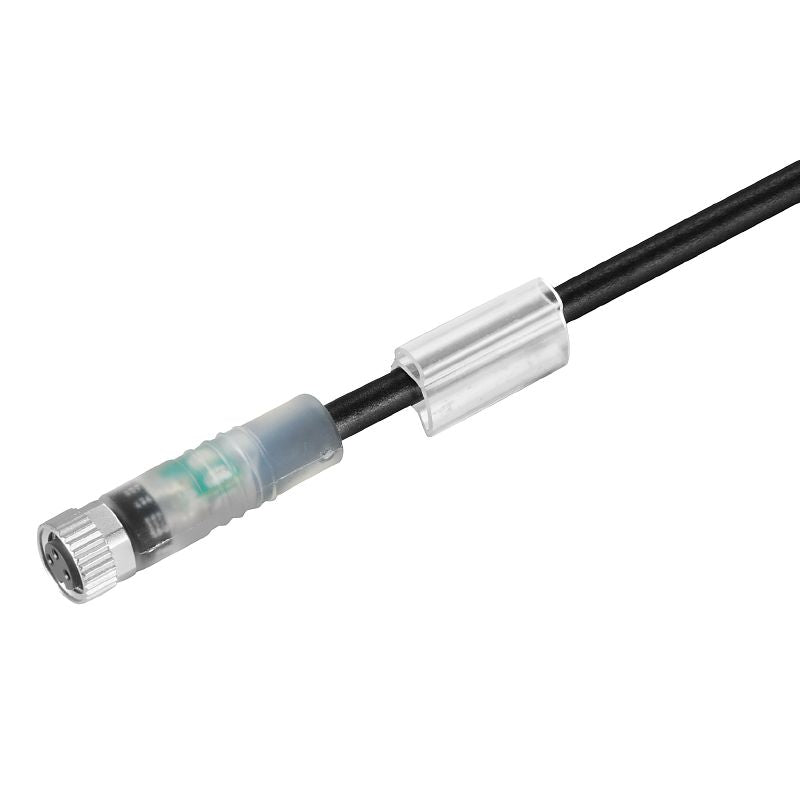

1444181000 - 10m Unshielded PUR Female Socket Cable with 3 Poles

1444181000 - 10m Unshielded PUR Female Socket Cable with 3 Poles

SKU: SKU: 1444181000 Download PDF

Variant:
  • 1444181000 - 10m Unshielded PUR Female Socket Cable with 3 Poles
Regular price Now $15.32
Regular price BEFORE   $0.00 Sale price Now $15.32
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile component from our sensor/actuator collection, this female socket is designed for easy integration, offering three poles and a generous length of 10 meters It features a built-in LED and is crafted without shielding, ensuring straightforward functionality The durable PUR sheath is halogen-free, making it a reliable choice for various applications.

Features and Benefits:

    •LED included.

    •Sheath material is PUR.

    •Hydrolysis and microbe resistant.

    •Insulation material is PP.

    •A-coded connector.

Specifications:

 Core cross-section 0.25 mm²
 Number of poles 3
 Cable length 10 m
 Outside diameter 4.1 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 24 V
 Insulation resistance 10^8 Ω
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Plugging cycles ≥ 100
 Bending cycles 12 Mio
