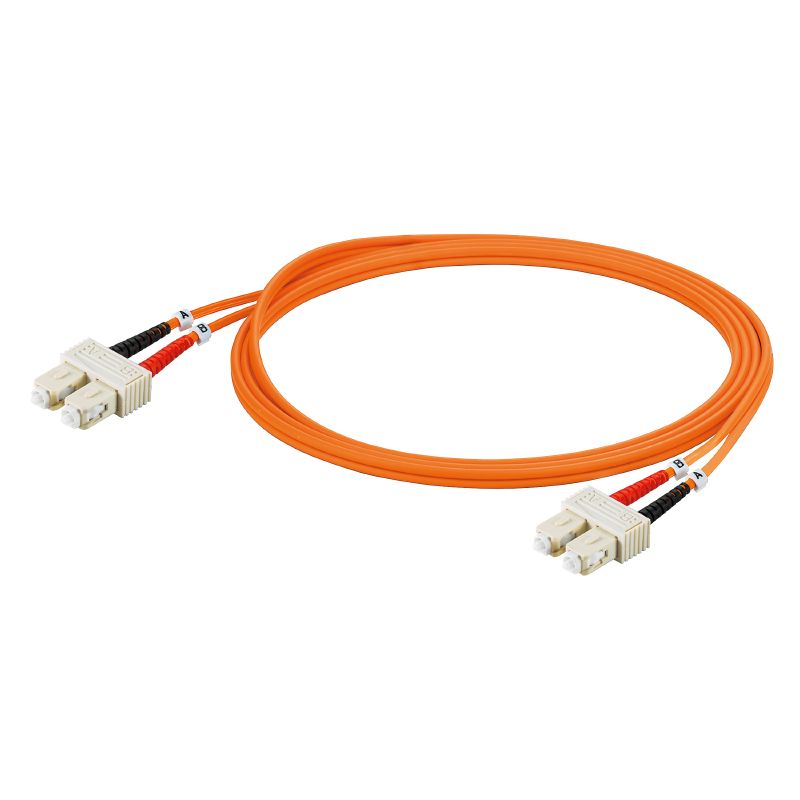

1433970010 - 1m SC Duplex Patch Cable with Duplex Clip, LSZH Material

1433970010 - 1m SC Duplex Patch Cable with Duplex Clip, LSZH Material

SKU: 1433970010   Download PDF

Select a Variant:
  • 1433970010 - 1m SC Duplex Patch Cable with Duplex Clip, LSZH Material
Qty:
Now $21.56   Web pricing policy
BEFORE   $0.00 Now $21.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience reliable connectivity with this 1-meter patch cable, specifically crafted for SC duplex applications It features a duplex clip for seamless use and is constructed with 50 µm fiber for optimal performance The cable's LSZH sheath material enhances safety by minimizing toxicity and smoke emission during a fire, all while boasting a robust IP 20 rating Ideal for various applications, this cable combines functionality with safety.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Low fire hazard due to LSZH material.

    •Suitable for various standards including IEC 61935-3 and IEC 61156-6.

    •High bandwidth performance with a minimum of 600 MHz*km at both 850 nm and 1300 nm.

Specifications:

 Length 1 m
 Operating temperature -20 °C to 70 °C
 Attenuation ≤ 2.7 dB/km at 850 nm, ≤ 0.8 dB/km at 1300 nm
 Bandwidth ≥ 600 MHz*km at 850 nm, ≥ 600 MHz*km at 1300 nm
 Fibre type GOF Multimode OM2
 Core diameter 50 µm

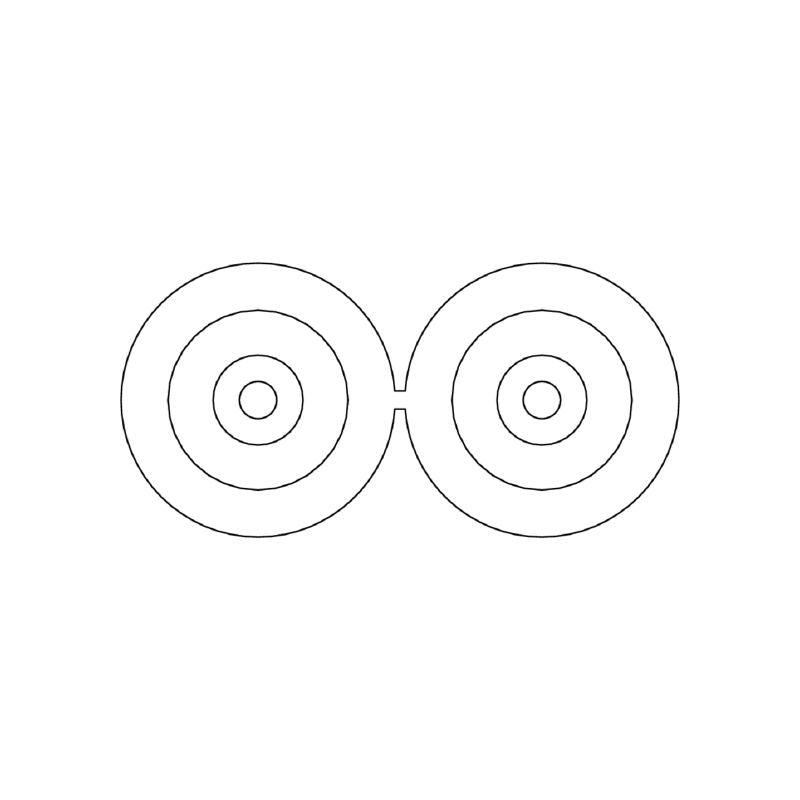

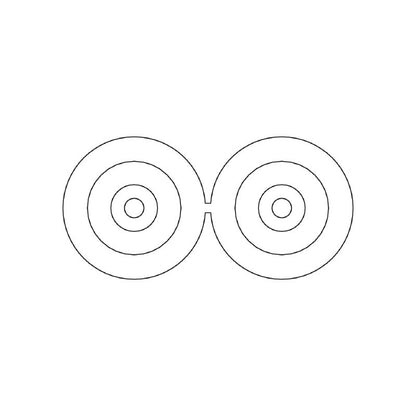

 Sheath diameter 2.8 * 5.7 mm
 Min. bending radius {'once only': '28 mm', 'repetitive': '56 mm'}
 Halogen No
 Plug type SC-Duplex, IP20, male contact, straight, plastic, unshielded
