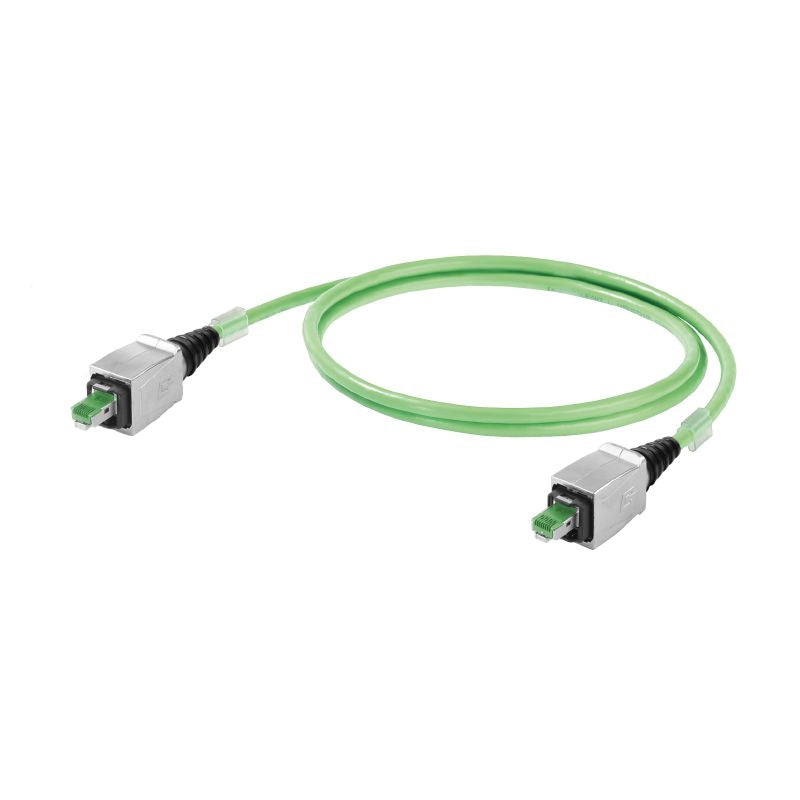

1307610050 - 5m PROFINET Dragline Cable with RJ45 IP67 Protection

SKU: SKU: 1307610050 Download PDF

Select a Variant:

1307610050 - 5m PROFINET Dragline Cable with RJ45 IP67 Protection

SET THE QTY:

Now $126.13 Web pricing policy

~~BEFORE $0.00~~ Now $126.13 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing our specialized dragline cable, expertly crafted for PROFINET applications Equipped with robust RJ45 connectors that boast IP 67 rating for exceptional protection, this cable is designed to meet the Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards Made from durable PUR material, it extends to a generous length of 5 meters, making it an ideal solution for reliable connectivity in various settings.

Features and Benefits:

•IP67 protection for robust performance in demanding environments.

•Compliant with ROHS regulations.

•Suitable for various industrial applications.

•Self-extinguishing and halogen-free design.

•UV resistant and silicone-free for durability.

Specifications:

Length	5 m
Net weight	429 g
Storage temperature	-50 °C...70 °C
Operating temperature	-40 °C...70 °C
Installation temperature	-20 °C...60 °C
Cable structure	{'Arrangement of wire cores': 'Star-quad', 'Colour sequence of wires': 'white, yellow, blue, orange', 'Complete shielding': 'Aluminium foil', 'Cross-section': '4*AWG 22/7 - 0.32 mm²', 'Sheath diameter': '6.7 mm', 'Insulation': 'PE'}
Electrical properties	{'Capacity at 1 kHz': '52 nF/km', 'Category': 'Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)', 'Characteristic impedance': '100 ± 15 Ω at 1–100 MHz', 'Loop resistance': '120 Ω/km', 'Operating voltage (UL rating)': '600 V', 'Signal propagation time': '5.3 ns/m'}
