1292350000 - 7/8" Built-in Plug with 0.2m Cable Length

1292350000 - 7/8" Built-in Plug with 0.2m Cable Length

SKU: SKU: 1292350000 Download PDF

Variant:
  • 1292350000 - 7/8" Built-in Plug with 0.2m Cable Length
Regular price Now $12.99
Regular price BEFORE   $0.00 Sale price Now $12.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

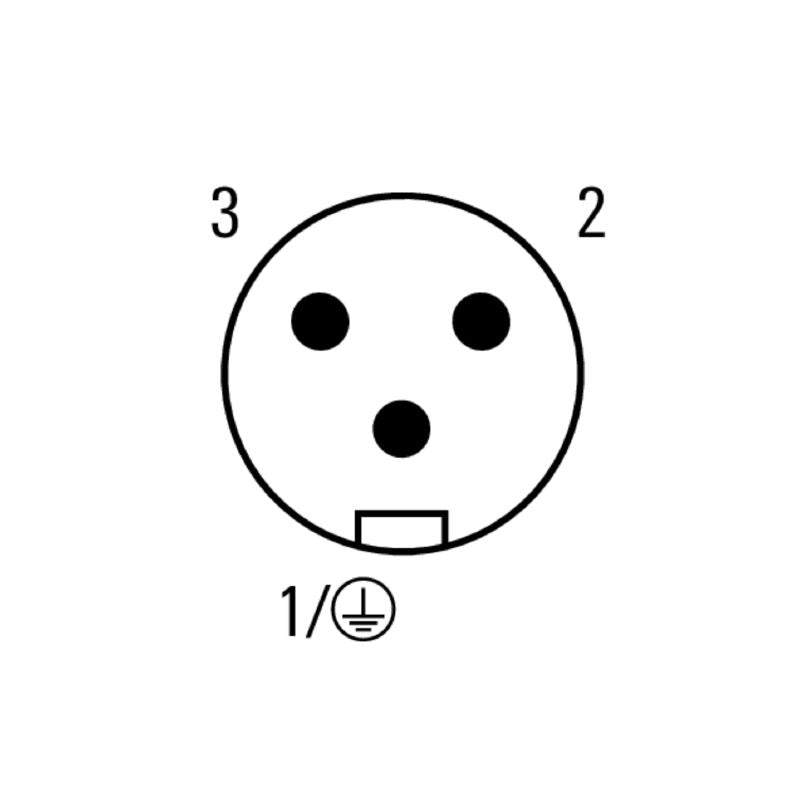

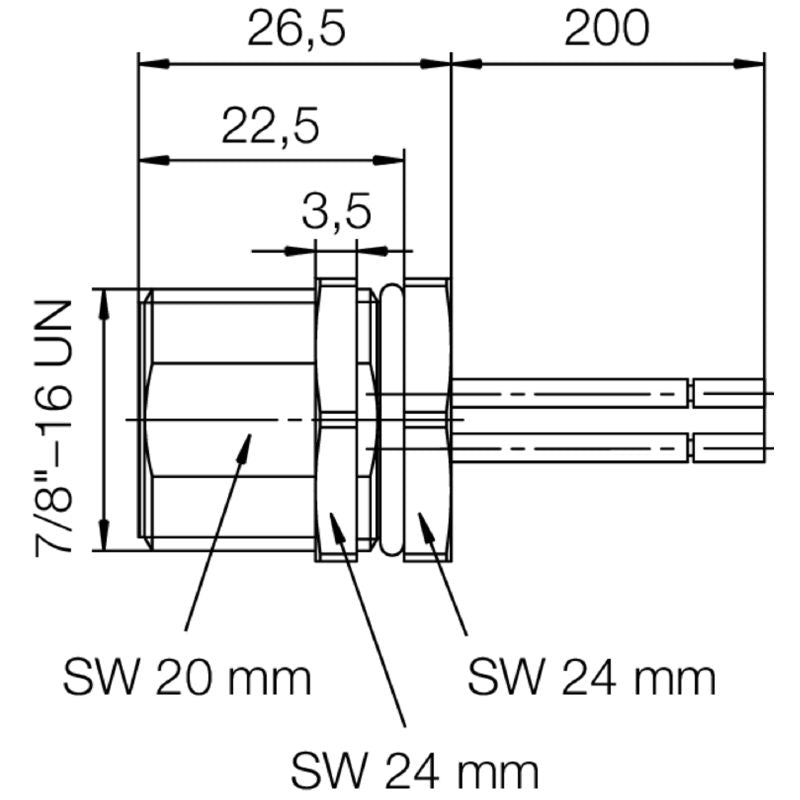

This product comes equipped with integrated plugs featuring a 7/8" connection and an M26 x 15 mounting thread With a total of 3 poles and a cable length of 02 meters, it provides a reliable connection for various applications Additionally, it meets RoHS standards, certified under number E307231 for quality assurance.

Features and Benefits:

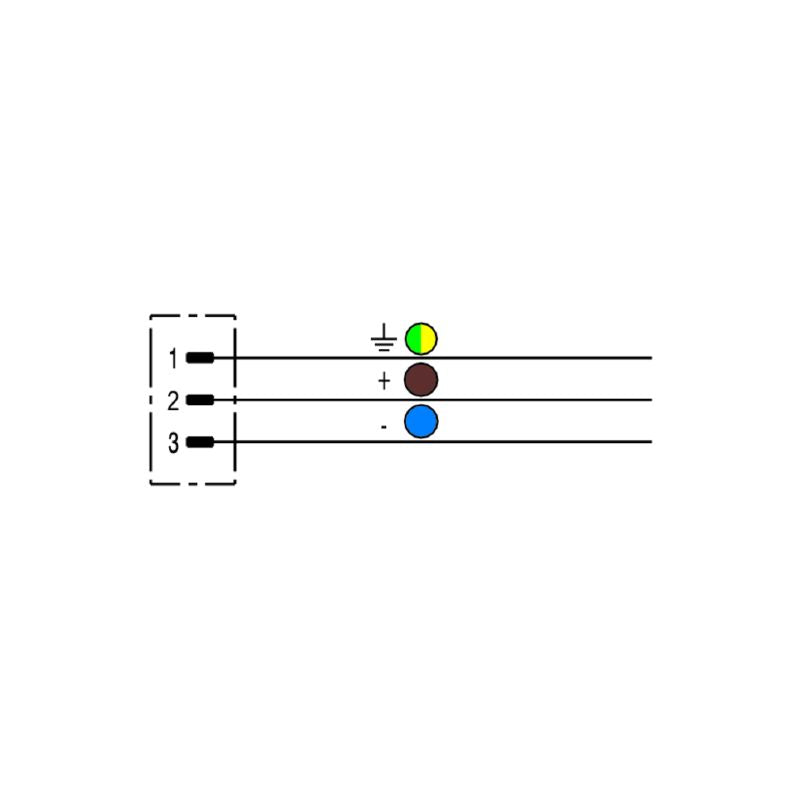

    •Colour coded with green/yellow, brown, and blue.

    •Gold-plated contact surface.

    •IP67 protection degree when screwed in.

    •Plugging cycles rated at ≥ 100.

Specifications:

 Core cross-section 0.75 mm²
 Nominal current 10 A
 Nominal voltage 300 V
 Number of poles 3
 Rated current 8 A (4- and 5-pole), 10 A (3-pole)
 Rated voltage 300 V
 Temperature range of housing -25…+85 °C
 Tightening torque 1.5 Nm
 Mounting torque range 11.8 ... 12 Nm
 Contact material CuZn
 Housing main material Zinc diecast, nickel-plated
