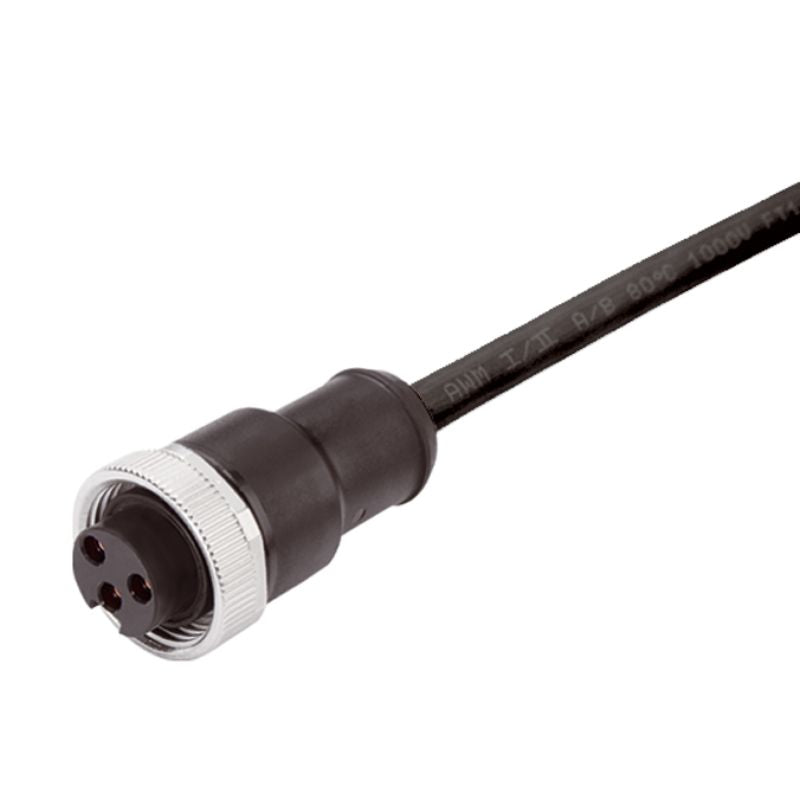

1292140200 - 2m PUR 7/8" Female Socket Sensor/Actuator Cable, 4-Pole

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

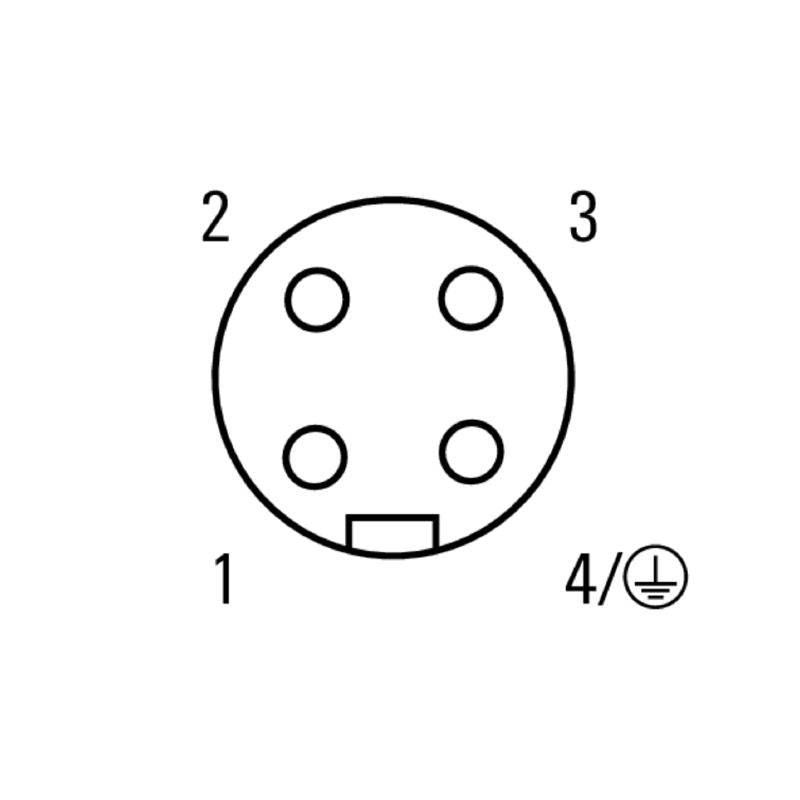

Introducing a robust 2-meter female socket designed for the sensor/actuator line, featuring a straight configuration that pairs seamlessly with 7/8" connections This model boasts a reliable four-pole setup (3 poles plus protective earth) and eliminates the need for an extra connector The cable is expertly shielded for enhanced durability, while the halogen-free PUR material of the sheath ensures safety and longevity.

Please note, this product does not come with an LED feature.

Features and Benefits:

•Compliant with RoHS regulations.

•Net weight of 244 g.

•Bending cycles rated at 5 million.

•Minimum bending radius is 7.5 times the diameter.

•Consists of a core cross-section of 1.5 mm².

•Sturdy design with a rated impulse voltage of 2,500 V.

Specifications:
