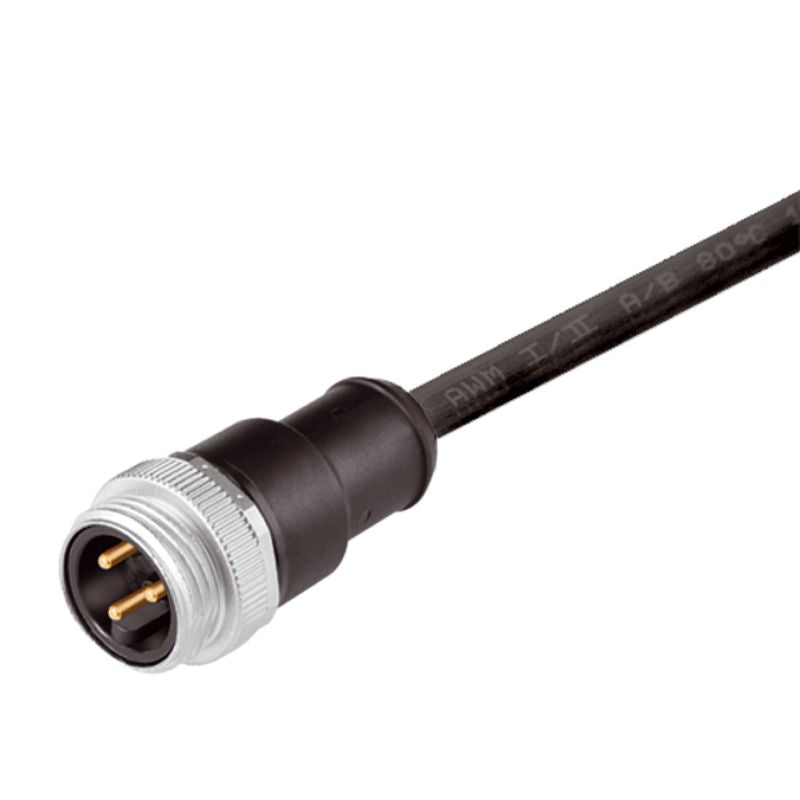

1292080500 - 5m PUR Sensor/Actuator Cable, 7/8", 3 Poles, Unconnectorized

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile sensor/actuator cable that measures 5 meters in length and features a 7/8" size With three poles, including two standard connections and one for protective earth, this cable ensures efficient functionality It is designed without a connector at one end and is unshielded, making it suitable for a range of applications Made from halogen-free PUR material, it meets RoHS compliance standards along with its associated exemptions, ensuring safety and environmental responsibility.

Features and Benefits:

•Network's bending cycles rated for 5 million.

•Minimum bending radius is 7.5 times the diameter of the cable.

•Outer diameter measures 7.4 mm ± 0.2 mm.

•Sheath material is PUR, providing flexibility and durability.

•Resistance to welding beads is not applicable.

•Supports temperature ranges of -20 to 80 °C while in motion, and -50 to 80 °C when stationary.

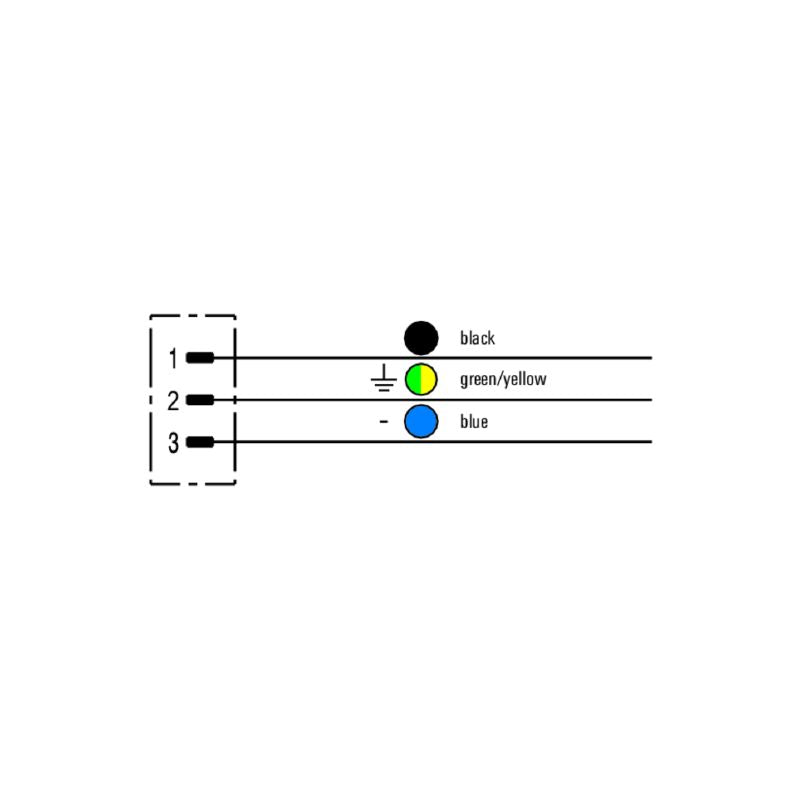

•Configured for three poles (2 + PE) with a nominal current of 12 A.
