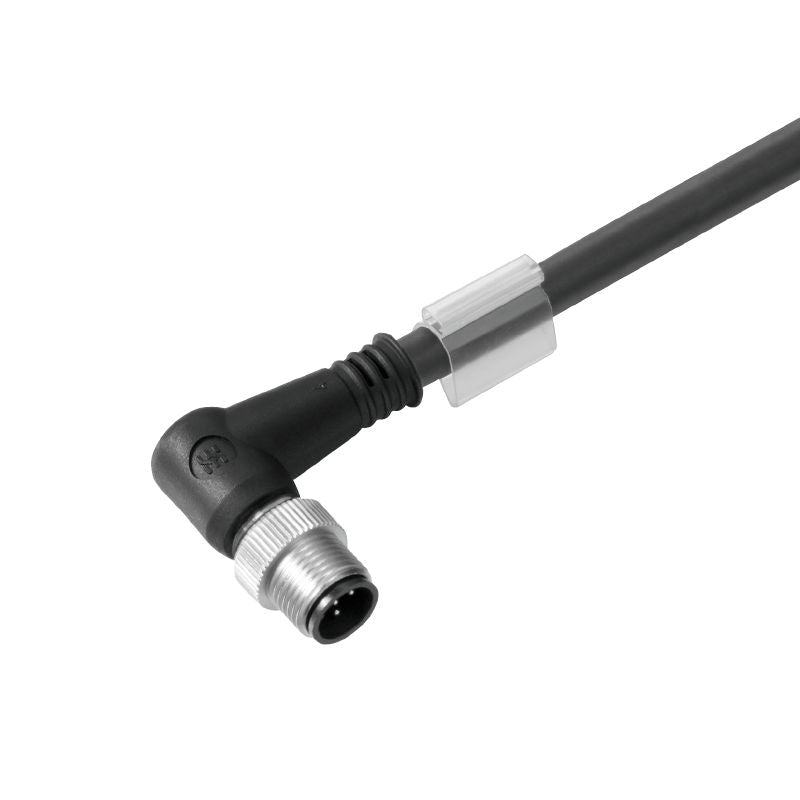

1276060300 - 3m Shielded Sensor/Actuator Cable with 8 Poles

1276060300 - 3m Shielded Sensor/Actuator Cable with 8 Poles

SKU: SKU: 1276060300

Variant:
  • 1276060300 - 3m Shielded Sensor/Actuator Cable with 8 Poles
Regular price Now $30.43
Regular price BEFORE   $0.00 Sale price Now $30.43
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile 3-meter cable tailored for sensor and actuator use This 8-pole cable features a shielded design for enhanced protection and durability Please note that one end is unconnected, providing flexibility for various applications Made from non-halogenated PUR sheath material, this cable is built to withstand demanding environments without compromising safety or performance.

Features and Benefits:

    •Shielded construction for enhanced protection.

    •PUR sheath material for durability.

    •Compact design with 90-degree angled plug.

Specifications:

 Cable Length 3 m
 Number of Poles 8
 Overall Diameter 6.3 mm ± 0.2 mm
 Nominal Current 2 A
 Nominal Voltage 30 V
 Temperature Range (Moving) -25...80 °C
 Temperature Range (Stationary) -40...80 °C
 Insulation Resistance 10^8 Ω
 Protection Degree IP67 when screwed in, IP65, IP66
 Bending Radius (Minimum) 12 x cable diameter for moving, 5 x cable diameter for stationary

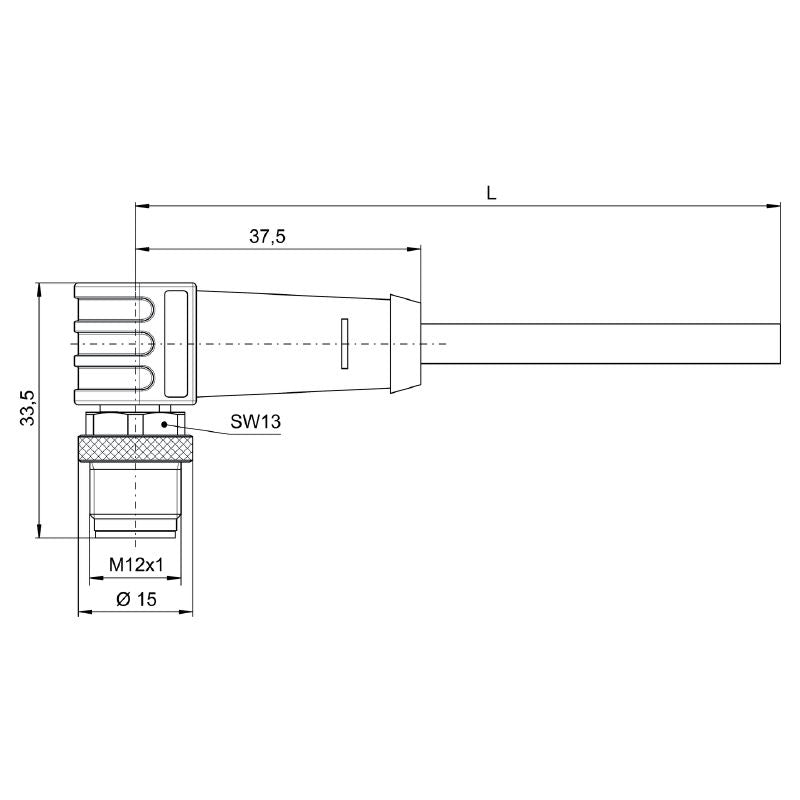

 Plug Type M12, A-coded, IP67, male contact, angled 90°
