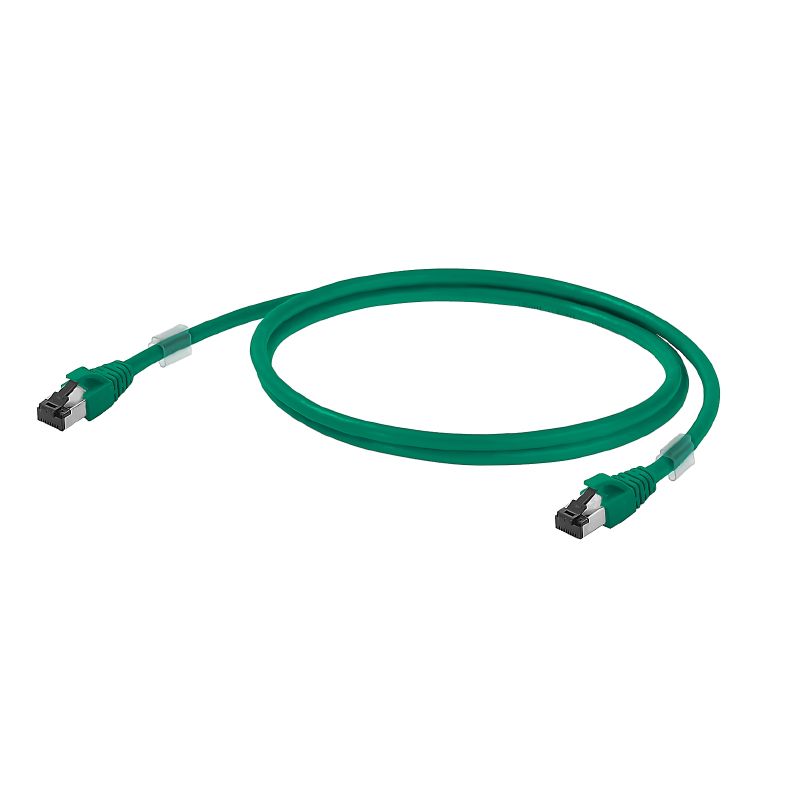

1251590050 - 5m LSZH RJ45 Patch Cable for IP 20 Connectivity

1251590050 - 5m LSZH RJ45 Patch Cable for IP 20 Connectivity

SKU: 1251590050   Download PDF

Select a Variant:
  • 1251590050 - 5m LSZH RJ45 Patch Cable for IP 20 Connectivity
Qty:
Now $15.43   Web pricing policy
BEFORE   $0.00 Now $15.43 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Optimize your network connectivity with this specialized RJ45 patch cable Designed for effective transmission over distances up to 20 meters as Cat6A and over 20 meters as Class EA according to ISO/IEC 11801:2010 standards, this 5-meter cable is the perfect solution for your setup Constructed from LSZH material, it prioritizes safety during installation, while its RoHS compliance guarantees the absence of hazardous substances.

Weighing in at 195 grams, this cable is capable of operating effectively in temperatures ranging from -20 °C to 60 °C, making it a reliable choice for various environments .

Features and Benefits:

    •Halogen-free according to IEC 60754-2.

    •Compliant with RoHS without exemptions.

    •Category: less than 20 m is Cat.6A, more than 20 m Class EA.

    •Transmission rate of 10 Gbit/s.

    •Operating voltage of 50 V DC.

Specifications:

 Length 5 m
 Length (inches) 196.85 inch
 Storage temperature -20 °C...60 °C
 Operating temperature -20 °C...60 °C
 Installation temperature 0 °C...50 °C
 Current-carrying capacity at 50 °C 1 A
 PoE / PoE+ conforming to IEEE 802.3at
 Standards ANSI / TIA / EIA-568-B.2-10, ISO / IEC 11801:2002, EN50173-1:2007
 Connector standard IEC 60603-7-51
 Arrangement of wire cores Twisted pair

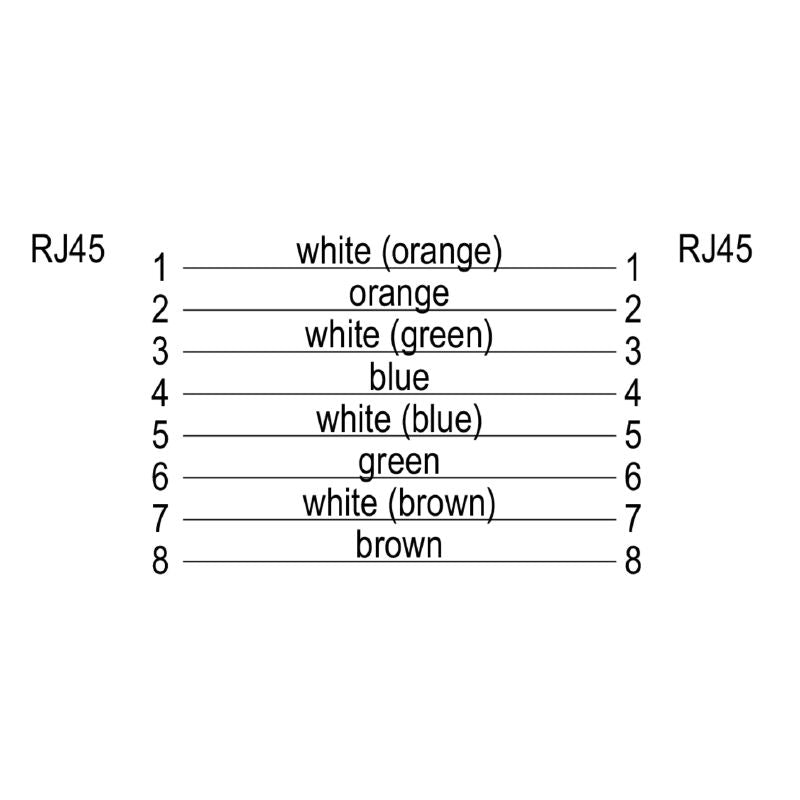

 Colour sequence of wires white - blue, white - orange, white - green, white - brown
 Complete shielding Shielding braid made from copper wiring
 Cross-section 4*2*AWG 27/7 - 4*2*0.1 mm²
 Insulation PE
 Insulation cross-section 1.04 mm
 Material sheath LSZH
 Number of wires 8
 Overlap of shielding braid 60 %
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Sheathing colour green
 Shielding S/FTP
 Strands 7
 Wire pair shielding Aluminium foil
 Capacity at 1 kHz 46 nF/km
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Coupling attenuation up to 1000 MHz 80 dB
 Coupling resistance at 10 MHz / m 5 mΩ
 Delay skew 2.5 ns/100m
 Operating voltage (UL rating) 30 V AC / 42.4 V DC
 Resistance differential 5 %
 Separating class according to EN 50174-2 d
 Test voltage: wire-wire-shield 2.5 kV / DC for 2 sec
 Min. bending radius, once only 4 x cable diameter
 Resistance to spread of flame in accordance with IEC 60332-2-2, IEC 60332-1-2, IEC 60332-3-24, UL 2556 (FT1)

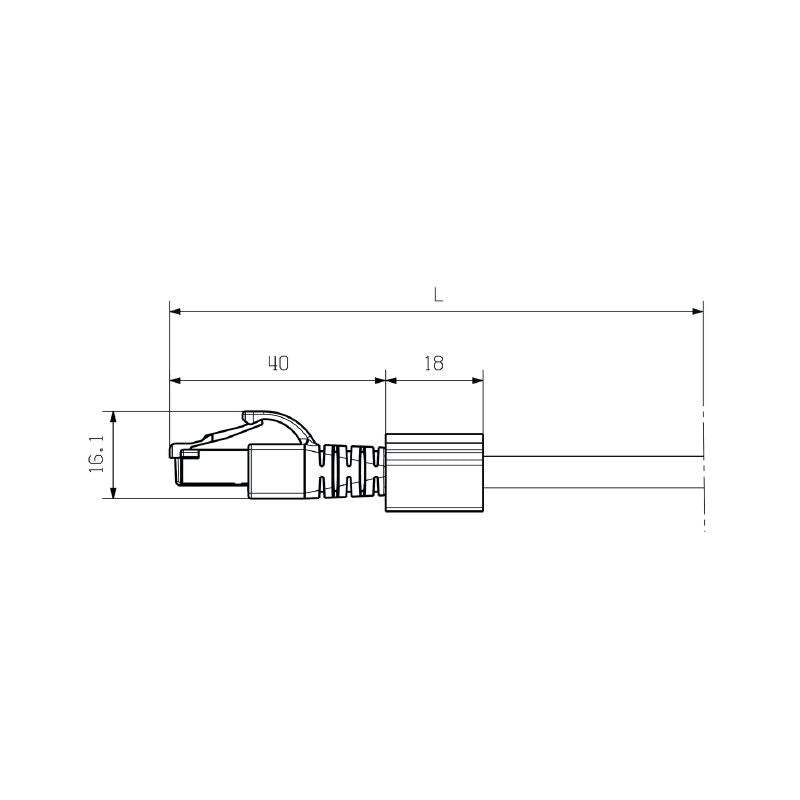

 Plug left RJ45, IP20, male contact, straight, plug, Plastic, shielded
 Plug right RJ45, IP20, male contact, straight, plug, Plastic, shielded
