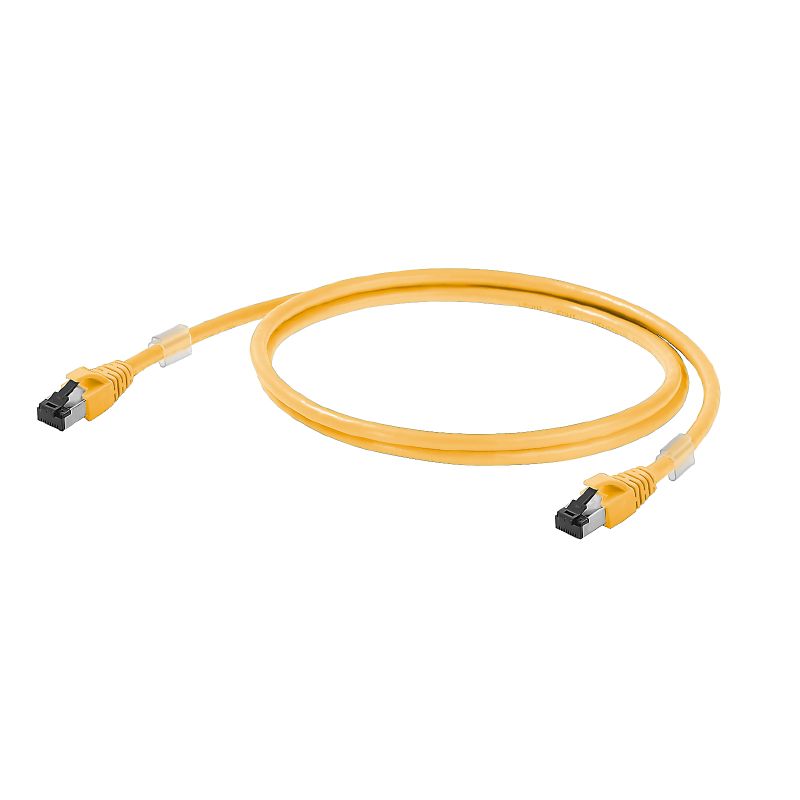

1251580150 - 15m RJ45 Patch Cable IP20 for Power over Ethernet

SKU: SKU: 1251580150 Download PDF

Select a Variant:

1251580150 - 15m RJ45 Patch Cable IP20 for Power over Ethernet

SET THE QTY:

Now $37.32 Web pricing policy

~~BEFORE $0.00~~ Now $37.32 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Explore the functionality of this 15-meter patch cable, equipped with RJ45 connectors and rated IP20 Tailored for applications within a range of 20 meters, this cable meets Class EA specifications in accordance with ISO/IEC 11801 2010 and is designed with LSZH compliance It boasts a maximum current capacity of 1A and adheres to the IEEE 8023at standards for Power over Ethernet With a temperature tolerance of -20 °C to 60 °C, this cable weighs in at a manageable 565 grams, making it an excellent choice for reliable networking solutions.

Features and Benefits:

•Compliant with RoHS without exemption.

•Halogen-free material.

•Transmission rate up to 10 Gbit/s.

•Shielding braid made from copper wiring.

•Twisted pair cable structure for reduced interference.

Specifications:

Length	15 m
Length (inches)	590.551
Storage temperature	-20 °C to 60 °C
Operating temperature	-20 °C to 60 °C
Installation temperature	0 °C to 50 °C
Current-carrying capacity at 50 °C	1 A
Standard compliance	ANSI / TIA / EIA-568-B.2-10, ISO / IEC 11801:2002, EN50173-1:2007
Insulation	PE
Test voltage	2.5 kV / DC for 2 sec
Sheath diameter (max)	5.9 mm
Sheath diameter (min)	5.5 mm
Wire pair shielding	Aluminium foil
Min. bending radius	4 x cable diameter
Capacity at 1 kHz	46 nF/km
Category rating	<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
