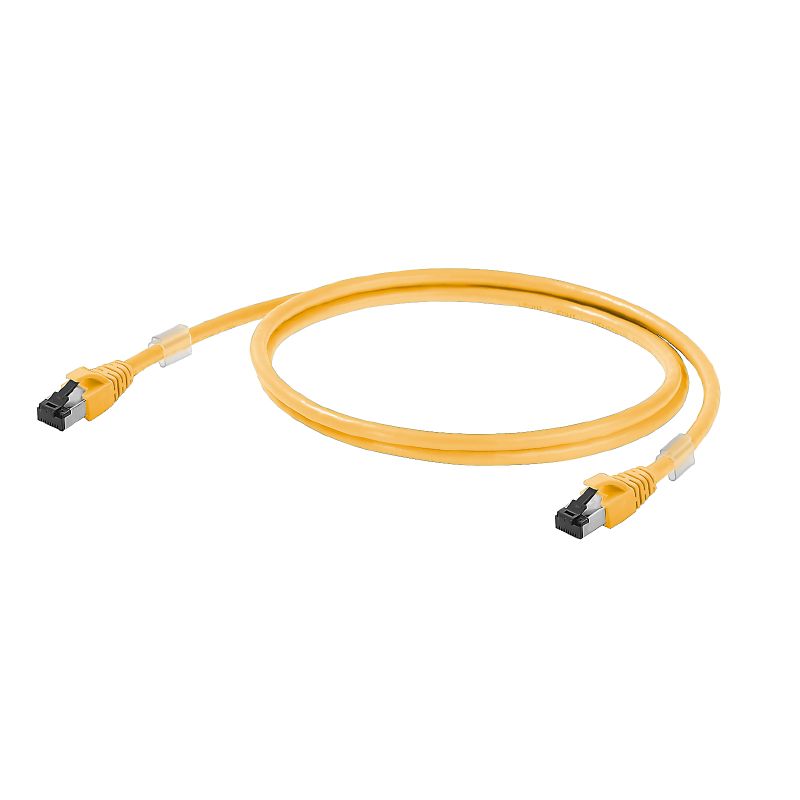

1251580060 - 6m Cat.6A RJ45 Patch Cable, LSZH, IP 20 Rating

SKU: SKU: 1251580060 Download PDF

Select a Variant:

1251580060 - 6m Cat.6A RJ45 Patch Cable, LSZH, IP 20 Rating

SET THE QTY:

Now $17.63 Web pricing policy

~~BEFORE $0.00~~ Now $17.63 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the versatility of this 6-meter patch cable featuring RJ45 connectors, designed for optimum performance Rated IP 20 and classified as Cat6A for lengths up to 20 meters, this cable also meets the Class EA standards set by ISO/IEC 11801:2010 Its low smoke zero halogen (LSZH) sheath enhances safety during fire emergencies Weighing 219 grams, it can withstand temperature variations between -20 °C and 60 °C, making it suitable for various environments.

Additionally, this cable is RoHS compliant without exceptions and free from substances of very high concern as per the REACH regulations.

Features and Benefits:

•Conforms to IEEE 802.3at for PoE/PoE+.

•Compliant with ANSI/TIA/EIA-568-B.2-10 and ISO/IEC 11801:2002 standards.

•Halogen-free as per IEC 60754-2 regulations.

•High-performance twisted pair structure for efficient data transmission.

Specifications:

Length	6 m
Temperature (Operating)	-20 °C to 60 °C
Temperature (Storage)	-20 °C to 60 °C
Current-carrying capacity	1 A
Category	<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic Impedance	100 ± 15 Ω at 1–100 MHz
Delay Skew	2.5 ns/100m
Operating Voltage	50 V DC
Resistance Differential	5%
Sheath Diameter (max)	5.9 mm
Sheath Diameter (min)	5.5 mm
Number of Wires	8
Insulation Material	PE
Plug Type	RJ45, IP20, male contact, straight, plastic, shielded
