Description:

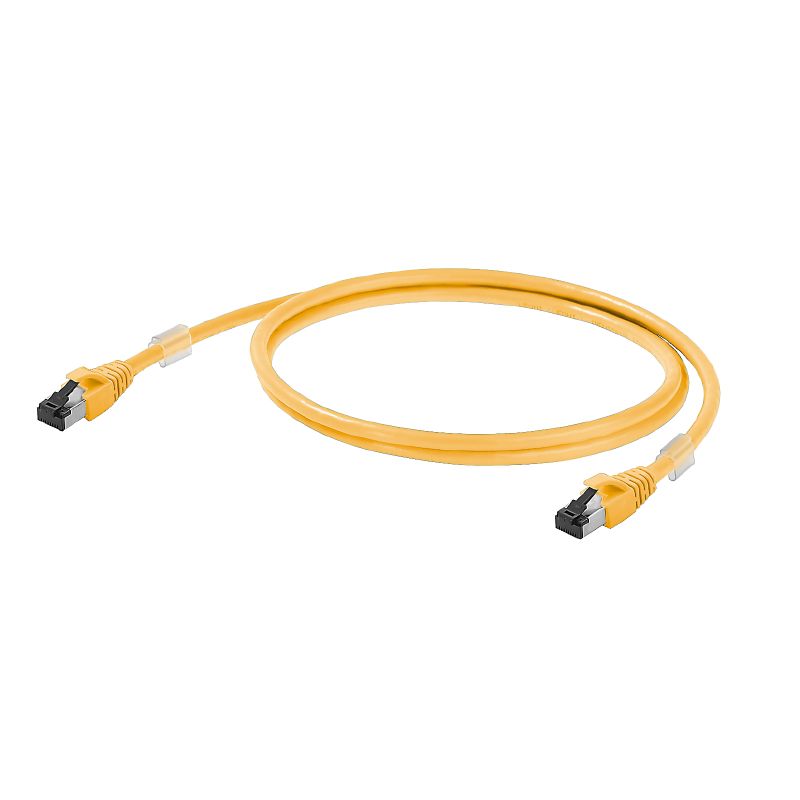

Enhance your network connectivity with this 5-meter patch cable, expertly crafted for RJ45 connections and rated to IP20 This cable meets Cat6A specifications for lengths under 20 meters and adheres to Class EA standards as per ISO/IEC 11801 2010 for longer distances Constructed from LSZH material, it ensures environmental safety with RoHS compliance (no exemptions) and REACH SVHC confirmation Its design features twisted pairs of wiring and complete shielding with copper braiding, making it a reliable choice for your networking needs.

Features and Benefits:

•Conforms to IEEE 802.3at for Power over Ethernet (PoE) functionality.

•Operating voltage rated at 50 V DC.

•Halogen-free cable as per IEC 60754-2.

•Category rating for lengths below 20 meters is Cat.6A.

Specifications:

Length	5 m
Operating temperature	-20 °C...60 °C
Installation temperature	0 °C...50 °C
Current-carrying capacity at 50 °C	1 A
Connector standard	IEC 60603-7-51
Arrangement of wire cores	Twisted pair
Shielding	S/FTP
Transmission rate	10 Gbit/s
Resistance to spread of flame	in accordance with IEC 60332-2-2
Sheath diameter, max.	5.9 mm
Sheath diameter, min.	5.5 mm
Electrical properties	{'Characteristic impedance': '100 ± 15 Ω at 1–100 MHz', 'Coupling attenuation up to 1000 MHz': '80 dB', 'Operating voltage (UL rating)': '30 V AC / 42.4 V DC', 'Capacity at 1 kHz': '46 nF/km'}
