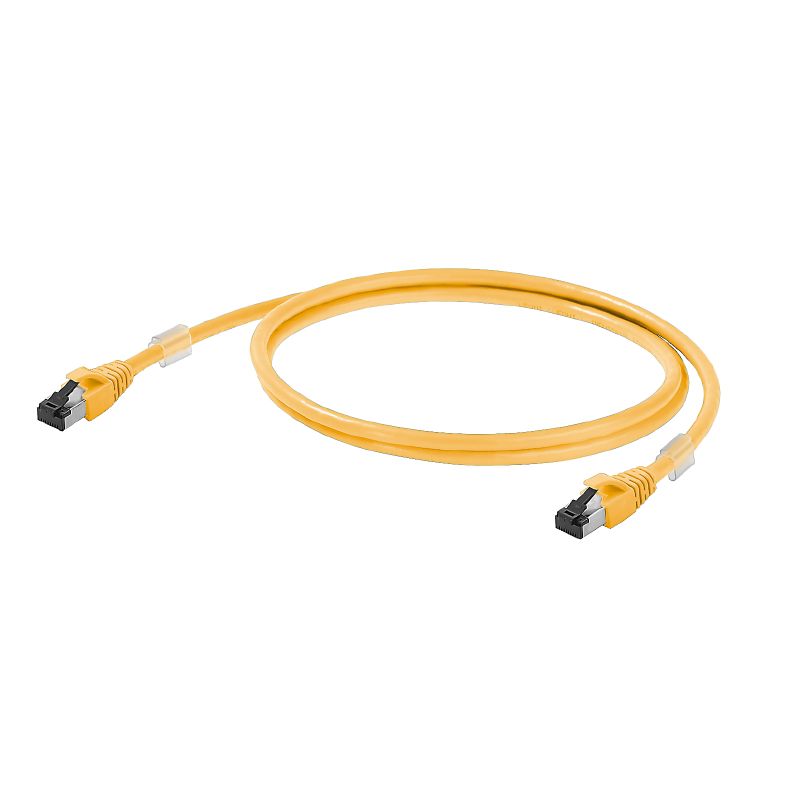

1251580040 - 4m LSZH Communication Cable with 8 Twisted Pairs

SKU: SKU: 1251580040 Download PDF

Select a Variant:

1251580040 - 4m LSZH Communication Cable with 8 Twisted Pairs

SET THE QTY:

Now $13.26 Web pricing policy

~~BEFORE $0.00~~ Now $13.26 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your connectivity with this 4-meter communication cable, expertly crafted for optimal data transmission It contains eight twisted pairs of wires, each shielded with a robust copper braid and insulated using low-smoke zero-halogen (LSZH) material, ensuring safety and compliance with RoHS standards This cable supports Power over Ethernet according to IEEE 8023at specifications and is built to perform effectively within a temperature range of 0 °C to 50 °C.

Designed in line with ANSI/TIA/EIA-568-B2-10 protocols, it also meets various international standards, including ISO/IEC 11801:2002, making it a reliable choice for various applications.

Features and Benefits:

•Meets CAT 6A / Class EA standards for data transmission.

•Transmission rate of 10 Gbit/s.

•Halogen-free construction for improved safety.

•Twisted pair configuration for reduced interference.

•Operating voltage ratings of 30 V AC and 42.4 V DC.

Specifications:

Length	4m
Current-carrying capacity at 50 °C	1 A
Connector standard	IEC 60603-7-51
Sheath diameter, max	5.9 mm
Sheath diameter, min	5.5 mm
Number of wires	8
Category	<20 m: Cat.6A / >20 m Class EA
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Transmission rate	10 Gbit/s
Electrical properties of cable	{'Capacity at 1 kHz': '46 nF/km', 'Coupling attenuation up to 1000 MHz': '80 dB', 'Delay skew': '2.5 ns/100m', 'Test voltage: wire-wire-shield': '2.5 kV / DC for 2 sec'}
