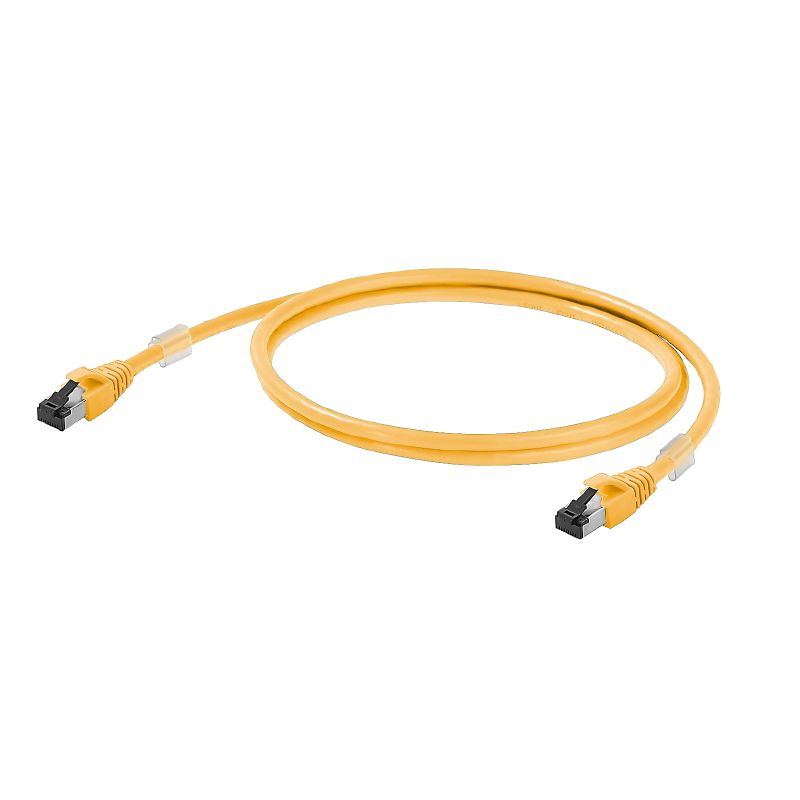

1251580015 - 1.5m RJ45 Patch Cable, IP 20, Low-Smoke LSZH

1251580015 - 1.5m RJ45 Patch Cable, IP 20, Low-Smoke LSZH

SKU: SKU: 1251580015 Download PDF

Variant:
  • 1251580015 - 1.5m RJ45 Patch Cable, IP 20, Low-Smoke LSZH
Regular price Now $7.79
Regular price BEFORE   $0.00 Sale price Now $7.79
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Upgrade your connectivity with this 15-meter patch cable, equipped with RJ45 connectors and designed to meet IP 20 standards Ideal for Cat6A applications, this cable is suitable for use in environments below 20 meters, conforming to ISO/IEC 11801 specifications It’s made with a low-smoke zero-halogen (LSZH) sheath, prioritizing safety and regulatory compliance With a current rating of 1A at 50 degrees Celsius, it also adheres to Power over Ethernet guidelines, particularly IEEE 802.

3at This versatile cable functions efficiently across a temperature range of -20 °C to 60 °C for storage and operation, and 0 °C to 50 °C during installation, making it reliable for various environments.

Features and Benefits:

    •Low-smoke zero-halogen (LSZH) construction.

    •Compliant with Power over Ethernet standards (IEEE 802.3at).

    •RJ45 connectors suitable for various networking applications.

    •Wide operating temperature range.

    •Suitable for communication networks requiring high bandwidth and reliability.

Specifications:

 Current-carrying capacity at 50 °C 1 A
 Operating voltage 50 V DC
 Transmission rate 10 Gbit/s
 Category <20 m: Cat.6A
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Number of wires 8
 Plug standard RJ45, IP20, male contact, straight, Plastic, shielded
 Storage temperature -20 °C...60 °C
 Operating temperature -20 °C...60 °C
 Installation temperature 0 °C...50 °C
 Halogen halogen-free, according to IEC 60754-2
 Resistance to spread of flame in accordance with IEC 60332
 Environmental Compliance RoHS Compliant
