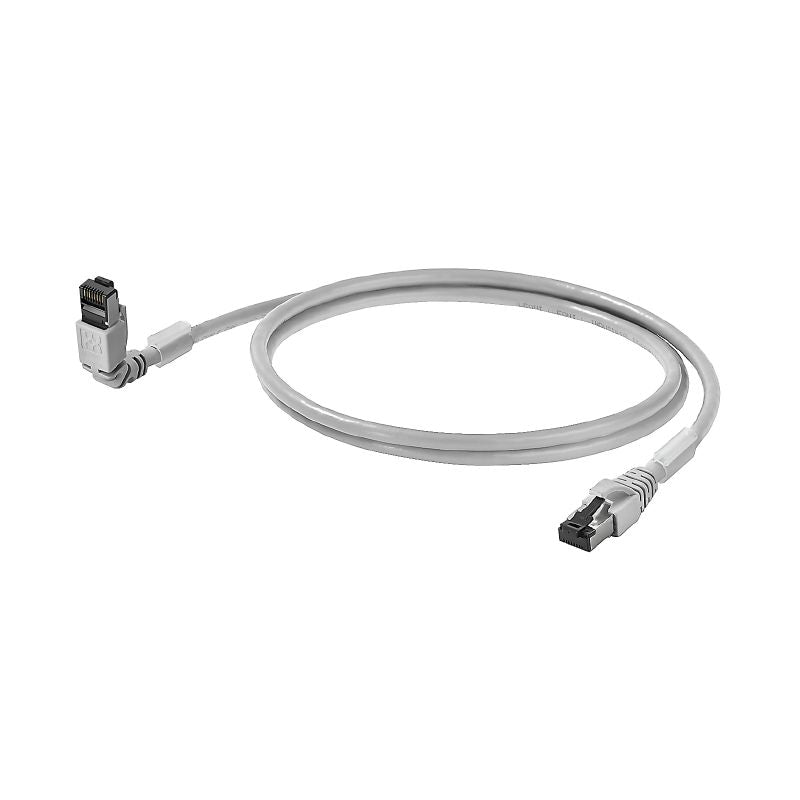

1248280150 - 15m RJ45 Cat.6A Patch Cable, 90° Angled Connector

1248280150 - 15m RJ45 Cat.6A Patch Cable, 90° Angled Connector

SKU: 1248280150 Download PDF

Variant:
  • 1248280150 - 15m RJ45 Cat.6A Patch Cable, 90° Angled Connector
Now $36.42
BEFORE   $0.00 Now $36.42
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the IE-C6FP8LD0150M40V40-D patch cable, expertly crafted for optimal RJ45 IP 20 connections This versatile cable supports Cat6A specifications for distances under 20 meters, while also accommodating Class EA standards for longer runs With a generous length of 15 meters, it features twisted pair wire cores shielded with a complete copper braid to enhance performance Compliant with RoHS standards, this cable is engineered to handle a current-carrying capacity of 1A at 50°C and is designed for reliable use across a variety of installation and storage environments.

Features and Benefits:

    •Compliance with RoHS without exemptions.

    •Halogen-free according to IEC 60754-2.

    •Shielded RJ45 connectors on both ends.

    •Quality construction with twisted pairs and complete shielding.

Specifications:

 Length 15 m
 Length (inches) 590.551
 Net weight 554 g
 Storage temperature -20 °C...60 °C
 Installation temperature 0 °C...50 °C
 Current-carrying capacity at 50 °C 1 A
 PoE / PoE+ conforming to IEEE 802.3at
 Twisted pair yes
 Shielding S/FTP with copper braid
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Operating voltage 50 V DC
 Operating voltage (UL rating) 30 V AC / 42.4 V DC
 Resistance differential 5%
 Test voltage 2.5 kV / DC for 2 sec
 Capacity at 1 kHz 46 nF/km
 Category <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
 Characteristic impedance 100 ± 15 Ω at 1-100 MHz
 Delay skew 2.5 ns/100m
 Min. bending radius, once only 4 x cable diameter
 Flame resistance in accordance with IEC 60332-2-2 and other standards
