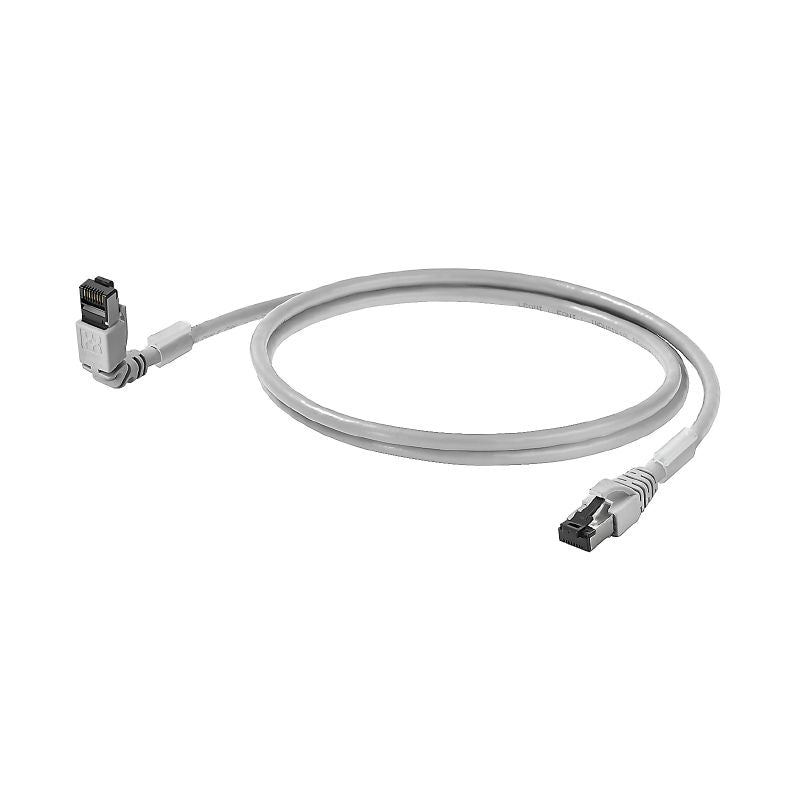

1248280100 - 10m Cat.6A LSZH RJ45 Patch Cable, Angled 90°

SKU: SKU: 1248280100 Download PDF

Select a Variant:

1248280100 - 10m Cat.6A LSZH RJ45 Patch Cable, Angled 90°

SET THE QTY:

Now $25.82 Web pricing policy

~~BEFORE $0.00~~ Now $25.82 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience optimal connectivity with this 10-meter RJ45 patch cable, expertly crafted to meet IP 20 standards It adheres to Cat6A specifications for distances under 20 meters and complies with Class EA requirements according to ISO/IEC 11801 2010 for extended lengths Constructed from LSZH material, this cable minimizes smoke emissions for safer use It supports 1 A at 50 °C and is fully compliant with PoE and PoE+ standards outlined by IEEE 802.

3at, ensuring reliable performance across various environmental conditions.

Features and Benefits:

•Compliant with RoHS and has no hazardous substances above 0.1 wt%.

•Twisted pair cable arrangement with a complete copper shielding braid.

•Grey LSZH sheath.

•Halogen-free and flame-resistant according to various IEC standards.

•Plug types include RJ45, IP20, male contact, classified as straight on one end and angled 90° on the other.

Specifications:

Length	10 m
Net weight	383 g
Storage temperature	-20 °C...60 °C
Operating temperature	-20 °C...60 °C
Installation temperature	0 °C...50 °C
Current-carrying capacity at 50 °C	1 A
Category	<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Coupling attenuation up to 1000 MHz	80 dB
Operating voltage	50 V DC
Transmission rate	10 Gbit/s
Sheath diameter, max	5.9 mm
Sheath diameter, min	5.5 mm
Number of wires	8
Insulation cross-section	1.04 mm
