1248280005 - 0.5m RJ45 Patch Cable, Cat.6A, Angled 90°, LSZH

1248280005 - 0.5m RJ45 Patch Cable, Cat.6A, Angled 90°, LSZH

SKU: 1248280005   Download PDF

Select a Variant:
  • 1248280005 - 0.5m RJ45 Patch Cable, Cat.6A, Angled 90°, LSZH
Qty:
Now $5.65   Web pricing policy
BEFORE   $0.00 Now $5.65 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

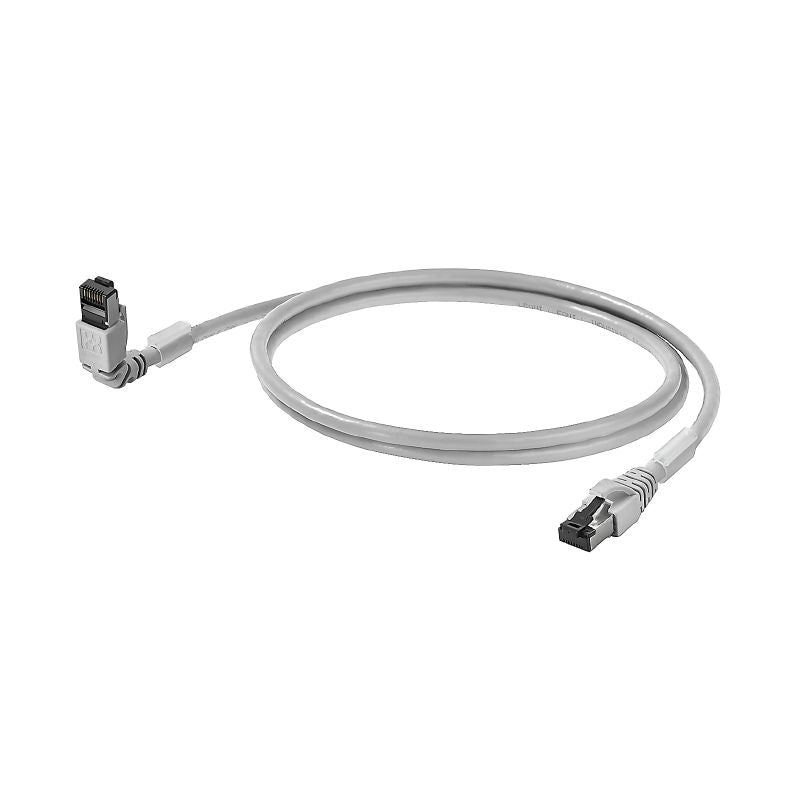

Introducing a versatile patch cable featuring RJ45 connectors, crafted for a range of applications, including Class EA communication This cable supports Cat6A standards for lengths up to 20 meters and complies with ISO/IEC 11801 specifications for longer runs Made from low smoke zero halogen (LSZH) material, it prioritizes safety Measuring 05 meters in length, this cable functions optimally in temperatures from -20 °C to +60 °C.

It also meets RoHS compliance standards and consists of twisted pairs, protected by a copper shielding braid for enhanced performance .

Features and Benefits:

    •Suitable for PoE / PoE+ per IEEE 802.3at standard.

    •Twisted pair construction with full shielding to reduce interference.

    •Halogen-free materials for environmental safety.

    •Designed for minimal bending radius to maintain performance.

Specifications:

 Length 0.5 m
 Operating temperature -20 °C to 60 °C
 Storage temperature -20 °C to 60 °C
 Current-carrying capacity 1 A at 50 °C
 Transmission rate 10 Gbit/s
 Sheath diameter, max 5.9 mm
 Sheathing material LSZH
 Shielding S/FTP
 Insulation PE
 Number of wires 8
 Coupling attenuation 80 dB up to 1000 MHz
 Operating voltage 50 V DC
 Connector standard IEC 60603-7-51
