1190490000 - Wire Stripper for PV Cables, 4-16 mm² Capacity
1190490000 - Wire Stripper for PV Cables, 4-16 mm² Capacity
SKU: SKU: 1190490000 Download PDF
- 1190490000 - Wire Stripper for PV Cables, 4-16 mm² Capacity
- 1190490000 - Wire Stripper for PV Cables, 4-16 mm² Capacity
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

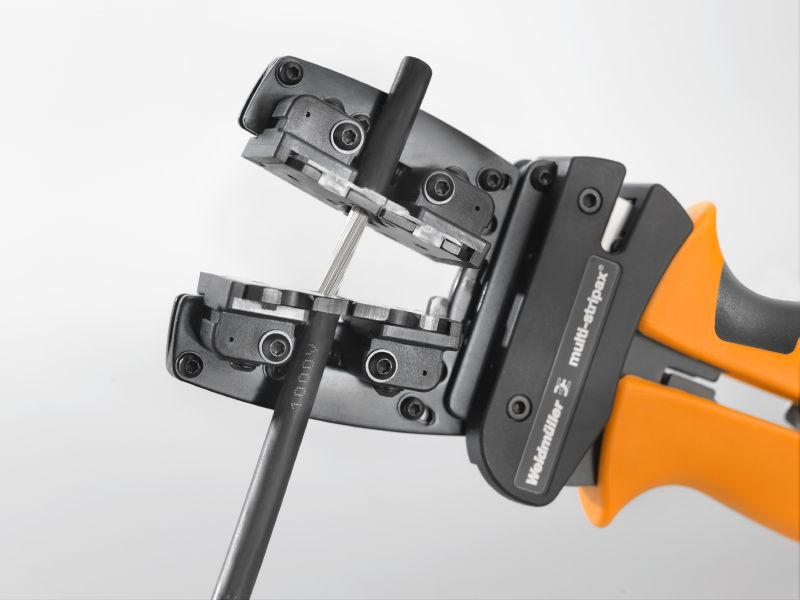

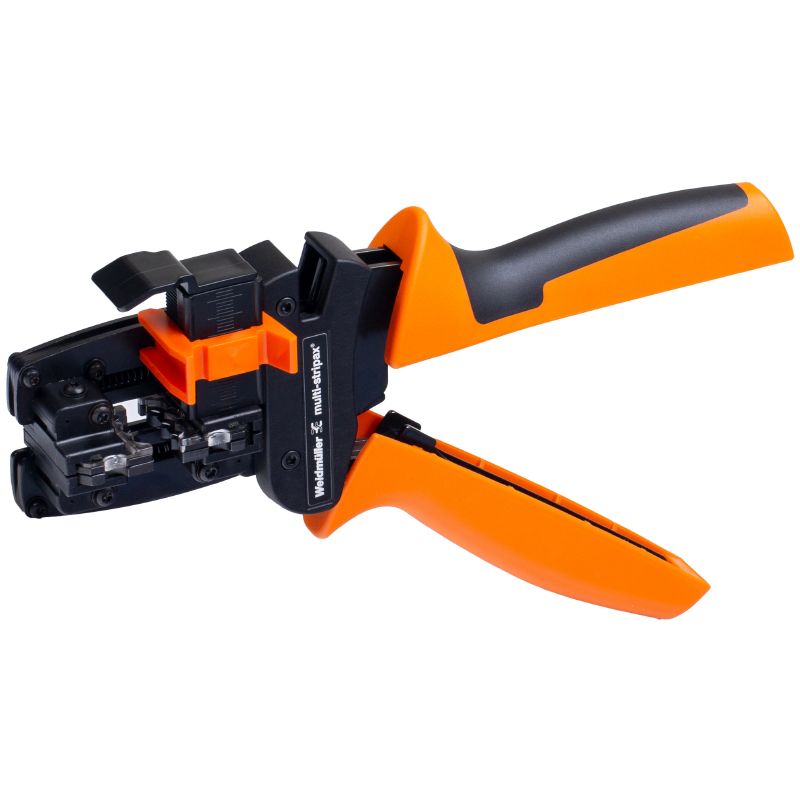

Introducing the MULTI-STRIPAX PV, a specialized wire stripping tool crafted for photovoltaic and similar earthing cables This unit offers impressive cutting capabilities, handling wire sizes up to 16 mm² It efficiently works with conductor dimensions as small as 4 mm² and up to 10 mm², facilitating stripping lengths starting from 2 mm Compatible with wire gauges from 14 AWG to 8 AWG, this tool is a must-have for your electrical tasks, providing versatility and precision.
Features and Benefits:
•Suitable for photovoltaic and short-circuit-proof cables.
•Cutting capacity for conductors up to 16 mm².
•Minimum stripping length specified at 2 mm.
•Flexibility with wire sizes from 14 AWG to 8 AWG.
Specifications:
| Depth | 40 mm |
| Height | 85 mm |
| Width | 250 mm |
| Net weight | 548 g |
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 4 mm² |
| Stripping length, min. | 2 mm |
| Stripping range AWG, max. | 8 AWG |
| Stripping range AWG, min. | 14 AWG |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
