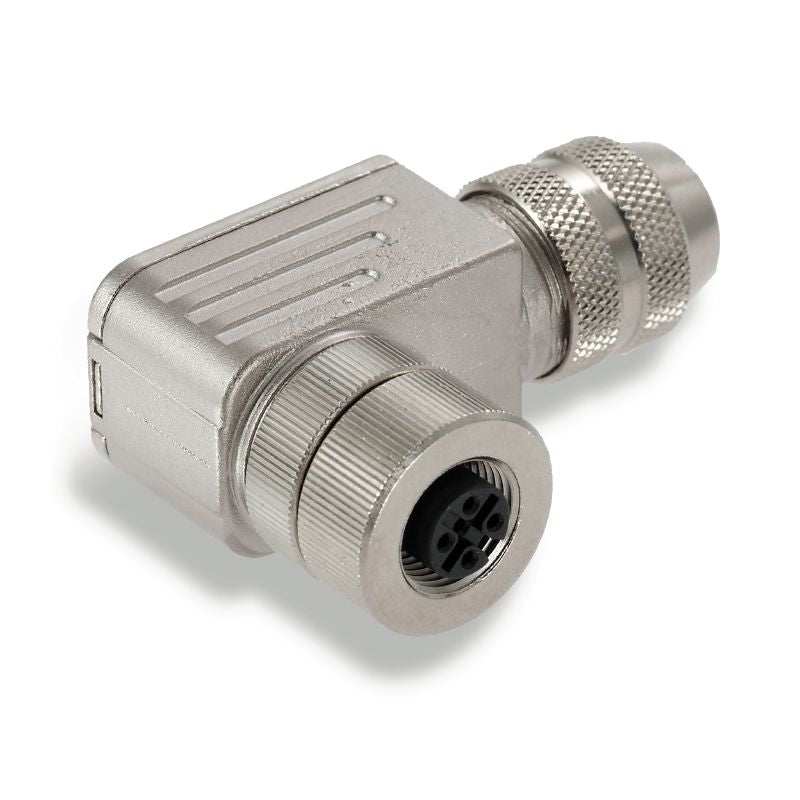

1139330000 - M12 Field Attachable Connector, IP67, 6-8mm Cable Diameter

Description:

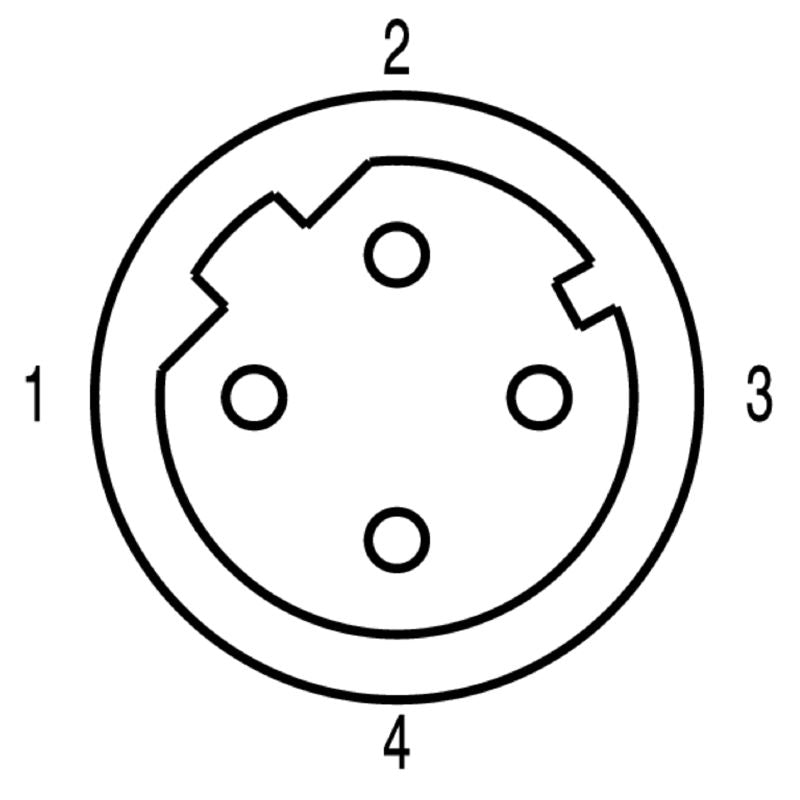

Experience dependable connectivity with the M12 field attachable connector, model SAIBWZ-M-4D-6/8-M12 This connector is engineered to accommodate cable diameters ranging from 6 mm to 8 mm and features D-coded wiring for standardized uses It supports conductor cross-sections of 025 mm² to 05 mm², ensuring versatile performance Connectivity is secured through a tension-clamp mechanism, allowing for a reliable connection with a nominal current of 4 A and a voltage rating of 250 V.

Crafted from CuZn material, this connector includes gold-plated contacts that enhance conductivity With an impressive insulation resistance of 10^8 Ω and an IP67 protection rating, it is built to thrive in challenging conditions The connector is rated for up to 100 plug cycles and functions efficiently within a temperature range of -40 °C to +85 °C.

Features and Benefits:

•Gold-plated contact surface for superior conductivity.

•Temperature range from -40 to +85 °C.

•IP67 protection degree for dust and water resistance.

•Fitted with tension-clamp connection for reliable fastening.

•Supports more than 100 plugging cycles.

Specifications:
