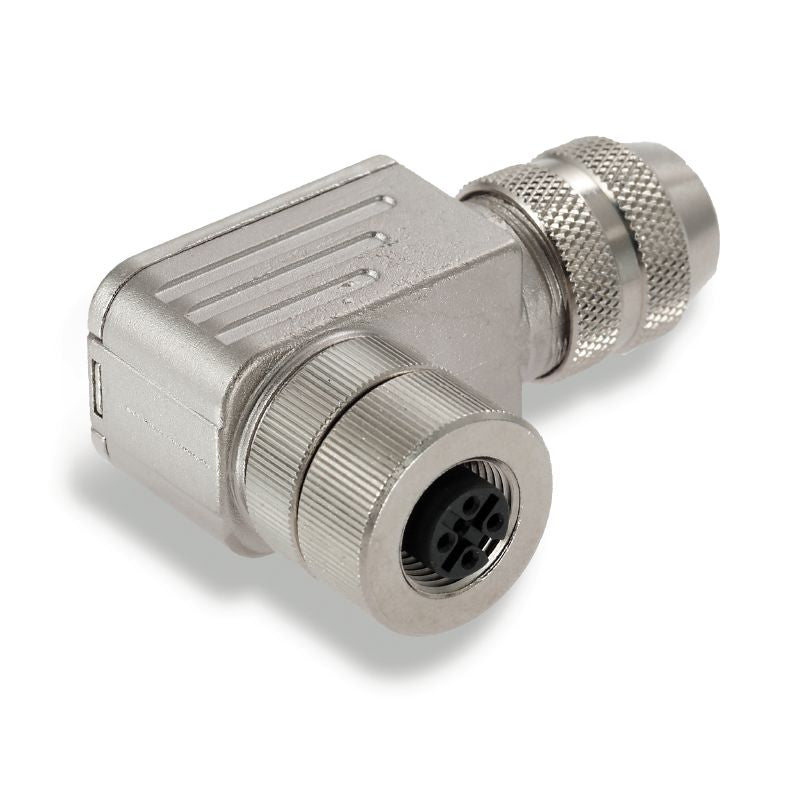

1125550000 - M12 Gold-Plated Connector, IP67, 4-6mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

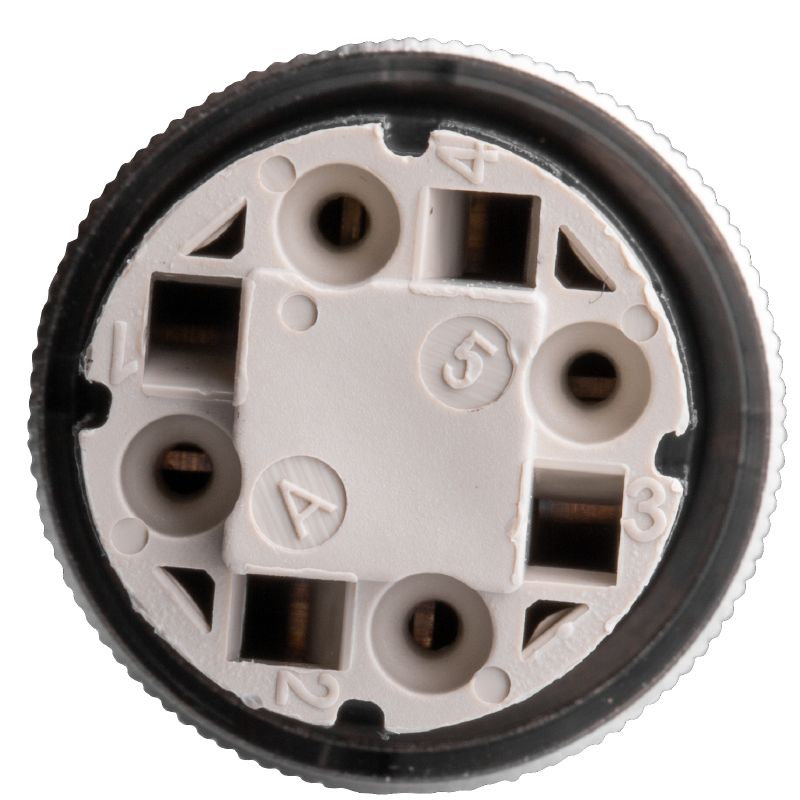

Introducing the SAIBWZ-M-4A-4/6-M12, a compact M12 field attachable connector engineered for efficiency and reliability Complying with ROHS standards, this connector is compatible with cables having diameters ranging from 4 mm to 6 mm It features an A-coded design, with a gold-plated female contact surface that ensures superior performance Constructed from high-quality PA material, the SAIBWZ-M-4A-4/6-M12 boasts impressive insulation resistance rated at 10^8 Ω.

It supports conductor cross-sections between 014 mm² and 05 mm², accommodating a nominal current of up to 4 A and a voltage rating of 250 V With an IP67 protection rating, this connector is designed to withstand dust and water exposure, ensuring durability over time Built for longevity, it handles at least 100 plugging cycles and features a pollution severity rating of 3 Its operating temperature range spans from -40 to +85 °C, making it suitable for diverse environments.

The tension-clamp connection method guarantees secure connectivity, while the diecast zinc threaded ring provides added strength.

Features and Benefits:

•Gold-plated contact surface.

•IP67 protection degree.

•Tension-clamp connection method.

•Female gender connection.

•Durable with ≥ 100 plugging cycles.

Specifications:
