1119730300 - 30m PROFINET Dragline Cable, RJ45 IP67 PushPull Metal

1119730300 - 30m PROFINET Dragline Cable, RJ45 IP67 PushPull Metal

SKU: 1119730300   Download PDF

Select a Variant:
  • 1119730300 - 30m PROFINET Dragline Cable, RJ45 IP67 PushPull Metal
Qty:
Now $248.57   Web pricing policy
BEFORE   $0.00 Now $248.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

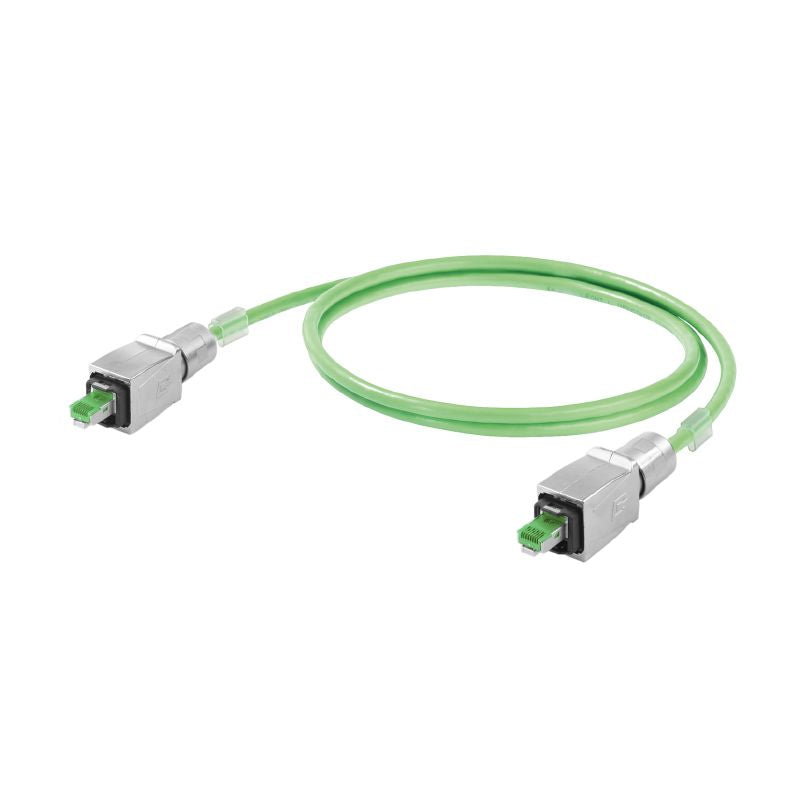

Introducing a specialized dragline cable crafted for PROFINET applications This cable features a robust RJ45 connector with an IP67 waterproof rating, housed in a durable PushPull V14 metal casing It complies with Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards and is constructed from high-quality PUR material With an impressive length of 30 meters, this cable is built to meet your connectivity needs with reliability and performance.

Features and Benefits:

    •Compliant with ROHS without exemption.

    •Aluminium foil for complete shielding.

    •Halogen-free according to IEC 60754-2.

    •UV-resistant and silicone-free.

    •Very good abrasion resistance.

    •Resistant to oils and spread of flame.

Specifications:

 Storage temperature -50 °C...70 °C
 Operating temperature -40 °C...70 °C
 Installation temperature -20 °C...60 °C

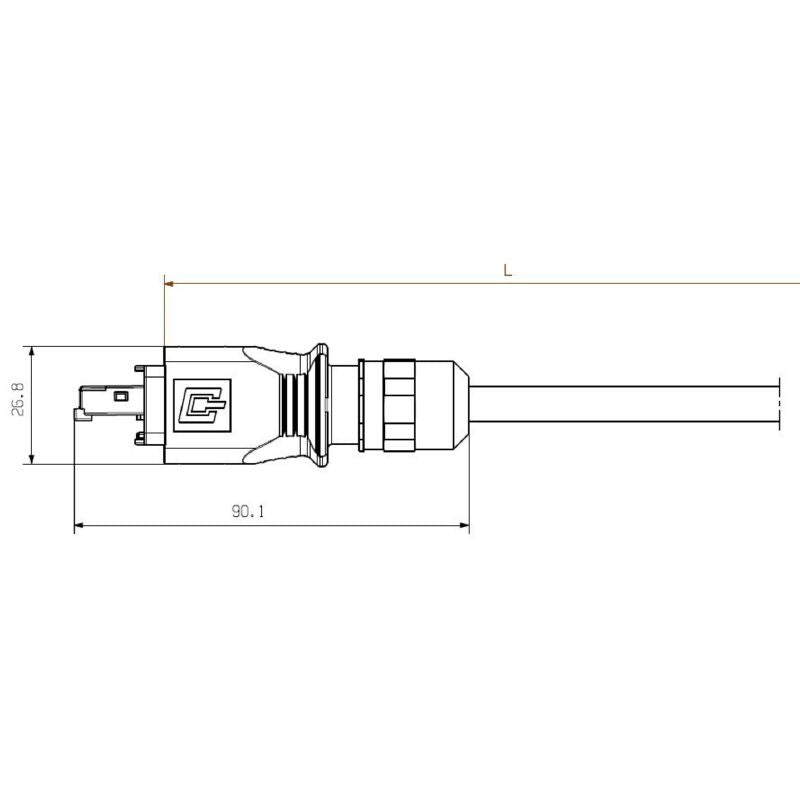

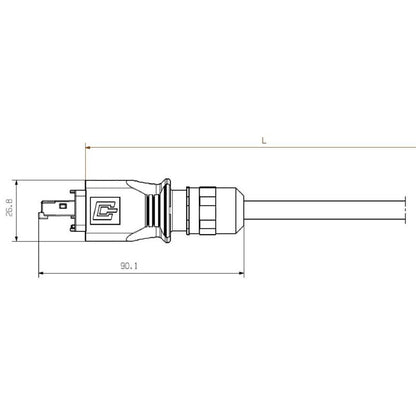

 Connector standard IEC 61076-3-117 Var. 14, IEC 60603-7-51

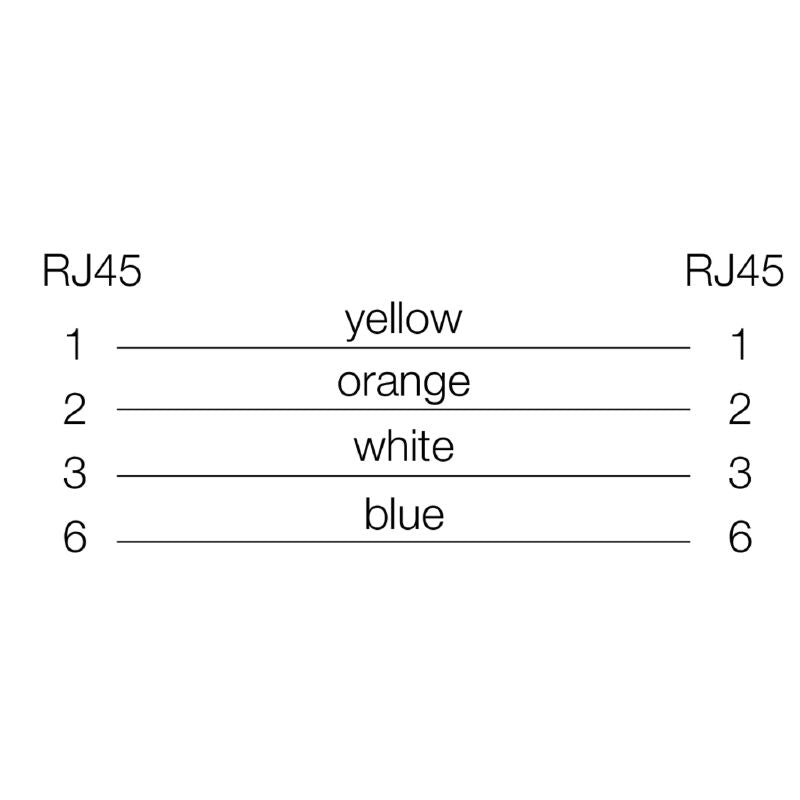

 Arrangement of wire cores Star-quad
 Cable structure {'Number of wires': '4', 'Sheath diameter, max.': '6.7 mm', 'Sheath diameter, min.': '6.3 mm', 'Insulation': 'PE', 'Material sheath': 'PUR', 'Wire core insulation thickness': '0.38 mm'}
 Electrical properties {'Category': 'Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)', 'Operating voltage (UL rating)': '600 V', 'Loop resistance': '120 Ω/km', 'Characteristic impedance': '100 ± 15 Ω at 1–100 MHz'}
 Mechanical properties {'Bending cycles': '3 Mio', 'Pulling force': '≤ 150 N', 'Min. bending radius, once only': '5 x cable diameter', 'Min. bending radius, repetitive': '7.5 x cable diameter'}
 Dimensional properties {'Diameter of inner sheathing': '3.9 mm', 'Sheathing colour': 'green (RAL 6018)', 'Sheathing material thickness': '0.9 mm'}
 Weight 1,916.1 g
