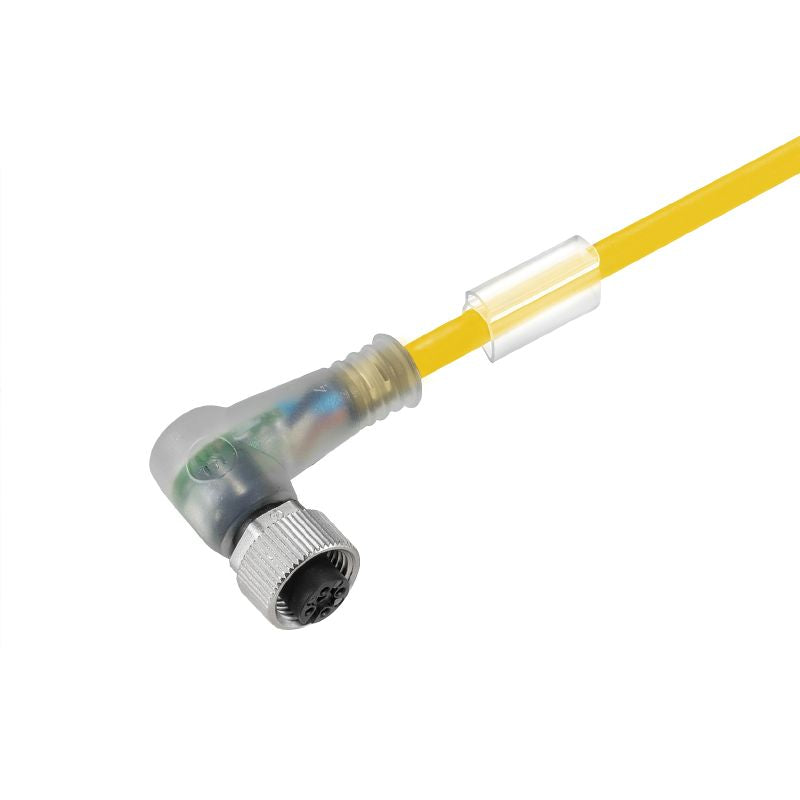

1114870150 - 1.5m M12 Sensor/Actuator Cable, 3 Poles, Angled Sheath

1114870150 - 1.5m M12 Sensor/Actuator Cable, 3 Poles, Angled Sheath

SKU: SKU: 1114870150

Select a Variant:
  • 1114870150 - 1.5m M12 Sensor/Actuator Cable, 3 Poles, Angled Sheath
Qty:
Regular price Now $11.09   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.09 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience optimal performance with this sensor and actuator component, designed for versatility It features an M12 connection with 3 poles and measures 15 meters in length The socket is thoughtfully angled for ease of access, while the unshielded design promotes reliable functionality Integrated LEDs provide clear status indications Crafted from halogen-free PUR material, this product combines durability and safety in one dependable package.

Features and Benefits:

    •LED indicator present.

    •Unshielded cable design.

    •Angled socket.

    •Halogen-free material.

Specifications:

 Cable length 1.5 m
 Core cross-section 0.34 mm²
 Number of poles 3
 Outer diameter 4.3 mm ± 0.2 mm
 Insulation PP
 Minimum bending radius, moving 10 x cable diameter
 Minimum bending radius, stationary 5 x cable diameter
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
