1092971000 - 10m M12 5-Pole PUR Sensor/Actuator Line Cable

1092971000 - 10m M12 5-Pole PUR Sensor/Actuator Line Cable

SKU: SKU: 1092971000 Download PDF

Variant:
  • 1092971000 - 10m M12 5-Pole PUR Sensor/Actuator Line Cable
Regular price Now $21.76
Regular price BEFORE   $0.00 Sale price Now $21.76
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

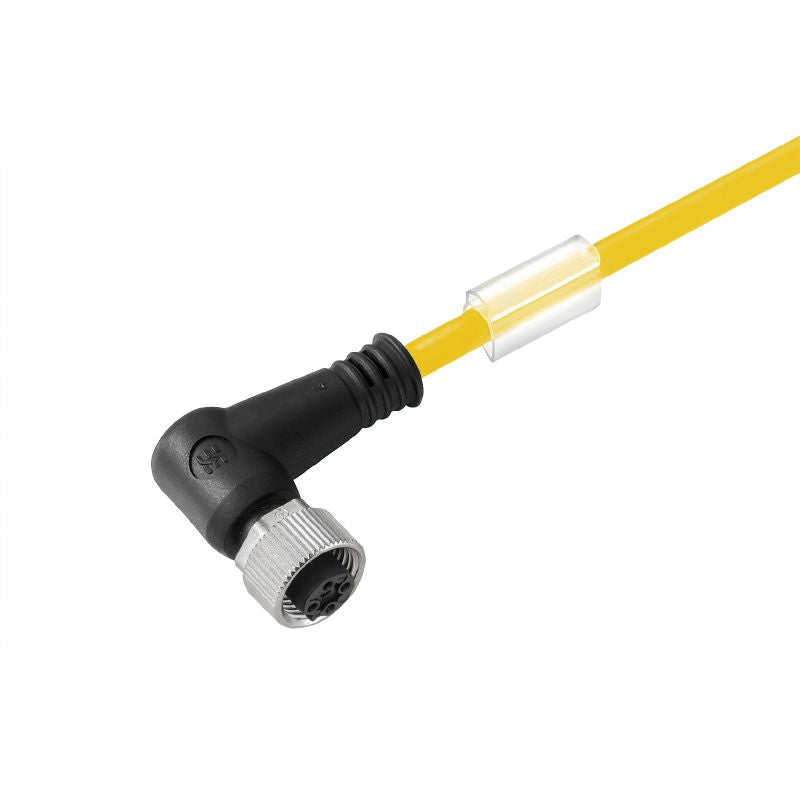

This sensor/actuator component is designed with precision, featuring a 10-meter length for versatile applications One end includes an M12 connector, while the opposite end is left without a connector for flexibility The angled socket, equipped with 5 poles, is crafted from halogen-free PUR material It's worth noting that this product is unshielded and does not come with an integrated LED.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Hydrolysis and microbe-resistant.

    •LABS-free.

    •Suitable for cable carriers.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 5 Mio
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Cable length 10 m
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 125 V
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
