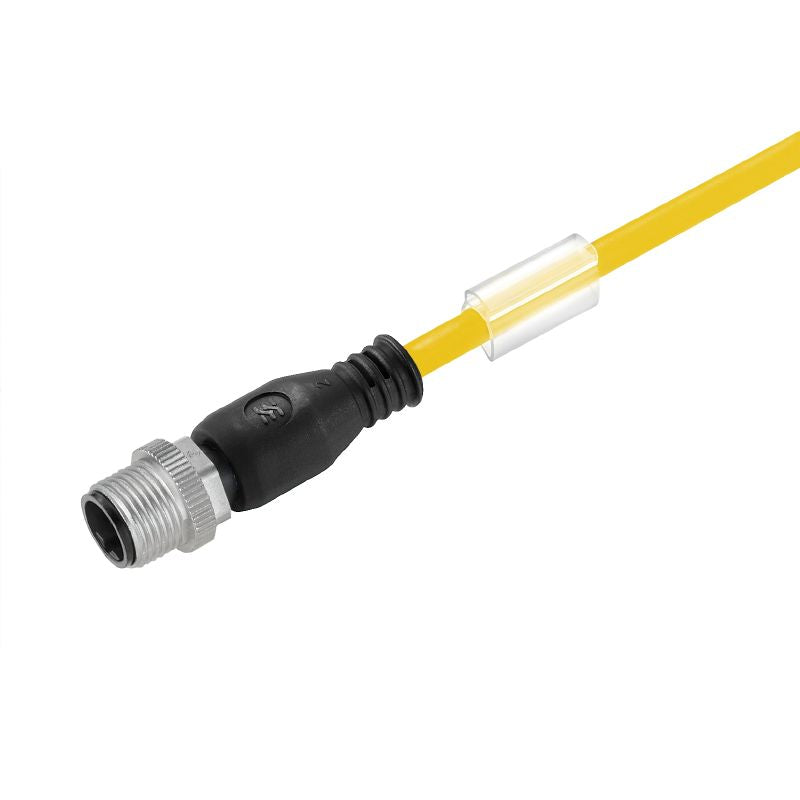

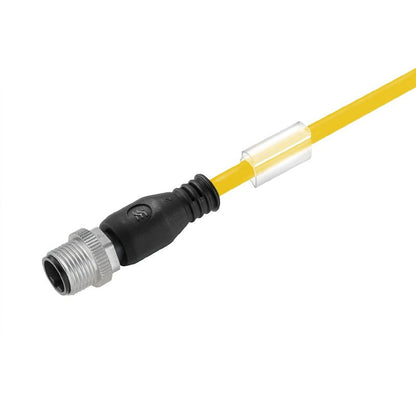

1077750150 - 1.5m Shielded Sensor/Actuator Line Cable, Halogen-Free

1077750150 - 1.5m Shielded Sensor/Actuator Line Cable, Halogen-Free

SKU: SKU: 1077750150

Select a Variant:
  • 1077750150 - 1.5m Shielded Sensor/Actuator Line Cable, Halogen-Free
Qty:
Regular price Now $7.31   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.31 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M12G-4-15UGE cable, a reliable connection solution measuring 15 meters in length This sensor and actuator line cable boasts a straight pin setup and features an unconnected end for versatility Crafted with a protective shield, it ensures durability without any LED lighting features The cable is made from a halogen-free PUR sheath material, making it both safe and environmentally friendly.

Perfect for various applications, this cable is designed to deliver performance you can trust.

Features and Benefits:

    •Compliant with RoHS exemption.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Configurable cable length is not available.

    •Compatible with cable carriers.

Specifications:

 Cable length 1.5 m
 Number of poles 4
 Outside diameter 4.7 mm ± 0.2 mm
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68, IP69
 Bending cycles 5 Mio
 Weight 54.56 g
