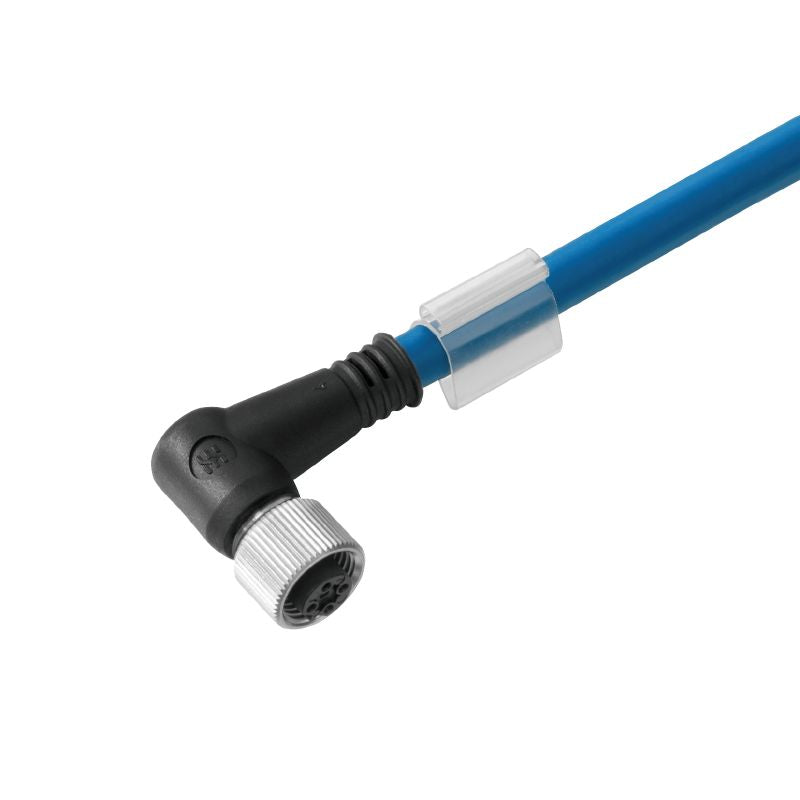

1076520500 - 5m Shielded M12 Connector Cable with Angled Socket

1076520500 - 5m Shielded M12 Connector Cable with Angled Socket

SKU: SKU: 1076520500 Download PDF

Variant:
  • 1076520500 - 5m Shielded M12 Connector Cable with Angled Socket
Regular price Now $51.94
Regular price BEFORE   $0.00 Sale price Now $51.94
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure reliable connectivity with this 5-meter shielded M12 connector cable Designed with a 2-pole setup and an angled socket, it is covered in a robust PVC sheath for added durability This cable adheres to RoHS standards and features favorable halogen content Notably, it has a minimum bending radius of eight times its diameter, making it versatile for both stationary and dynamic applications, while one end remains unconnected for flexibility in use.

Features and Benefits:

    •Halogen free.

    •Temperature range: -5...60 °C (moving), -30...80 °C (stationary).

    •IP67 protection degree.

Specifications:

 Cable length 5 m
 Number of poles 2
 Core cross-section 1 mm²
 Outside diameter 8 mm ± 0.4 mm
 Sheath material PVC
 Contact material Ni/Au
 Nominal voltage 100 V
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Protection degree IP67
 Tightening torque M12: 0.8 - 1.2 Nm
