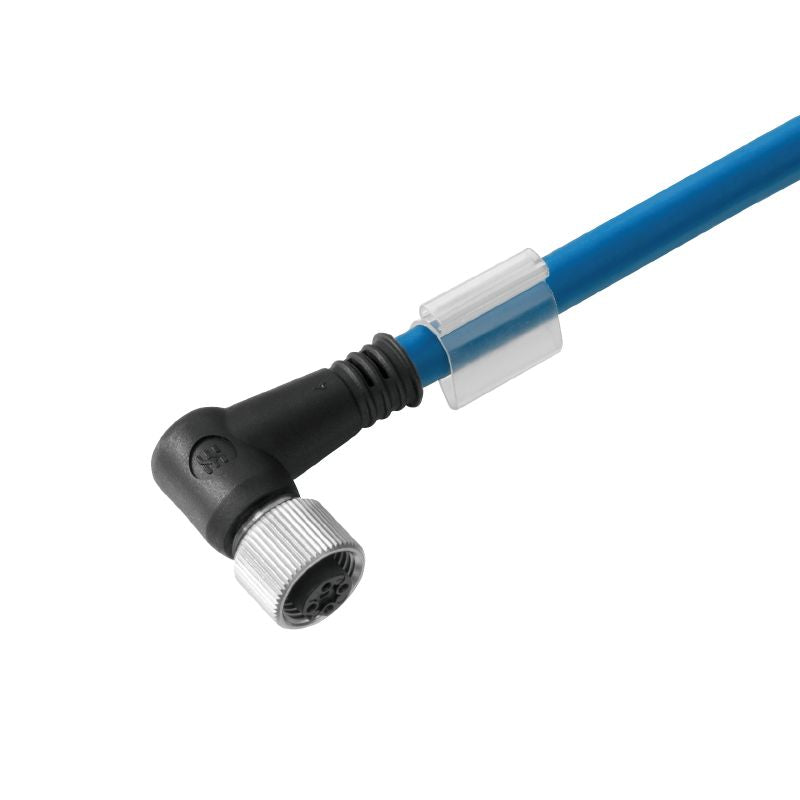

1076520100 - 1m PVC M12 Connector Cable with Angled Socket

1076520100 - 1m PVC M12 Connector Cable with Angled Socket

SKU: SKU: 1076520100 Download PDF

Variant:
  • 1076520100 - 1m PVC M12 Connector Cable with Angled Socket
Regular price Now $35.08
Regular price BEFORE   $0.00 Sale price Now $35.08
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this premium bus line cable, equipped with an M12 connector at one end and measuring a convenient 1 meter in length It features an angled socket design and is fully shielded for enhanced performance Constructed from durable PVC material, this product also meets RoHS compliance standards, ensuring it is safe and eco-friendly Ideal for various applications, it delivers reliability and efficiency.

Features and Benefits:

    •Halogen-free.

    •IP67 protection degree.

    •A-coded connection.

    •Gold-plated contact surface.

    •Angled socket design.

    •Maximum bending radius of 8 times the cable diameter.

Specifications:

 Cable length 1 m
 Number of poles 2
 Outside diameter 8 mm ± 0.4 mm
 Sheath material PVC
 Insulation PE
 Temperature range, moving -5...60 °C
 Temperature range, stationary -30...80 °C
 Nominal voltage 100 V
 Plugging cycles ≥ 100
 Protection degree IP67
 Weight 106 g
