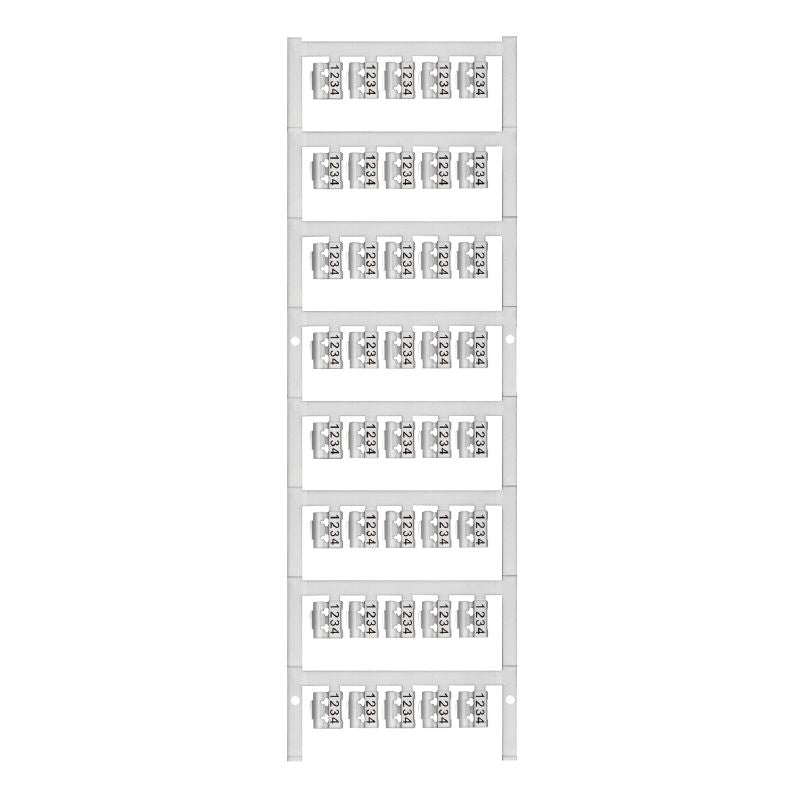

1062040000 - Customizable Polyamide Marker for Cables 4-10mm² (Pack of 24)

1062040000 - Customizable Polyamide Marker for Cables 4-10mm² (Pack of 24)

SKU: 1062040000   Download PDF

Select a Variant:
  • 1062040000 - Customizable Polyamide Marker for Cables 4-10mm² (Pack of 24)
Qty:
Now $10.89   Web pricing policy
BEFORE   $0.00 Now $10.89 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the SFC 25/12 MC SDR, a specialized marker designed for conductors and cables that meets tailored specifications This versatile product accommodates wires in the range of 4 to 10 mm² and is suitable for conductor outer diameters measuring between 4 and 6 mm Crafted from high-quality Polyamide 66, the marker also offers customizable color options to align with specific client preferences.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Black printing color.

    •MultiCard form of supply allows for easy distribution.

    •Can withstand operating temperatures from -40 to 100 °C.

    •UL 94 flammability rating of V-2.

Specifications:

 Depth 9.1 mm
 Height 12 mm
 Width 9.3 mm
 Operating temperature range -40...100 °C
 Conductor cross-section, max 10 mm²
 Conductor cross-section, min 4 mm²
 Conductor O.D. 4 - 6 mm
 Cross-section for connected wire 4 - 10 mm²
 Basic material Polyamide 66
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Size of labelling field 12 x 5.8 mm
 Number of markers per packaging unit MultiCard
