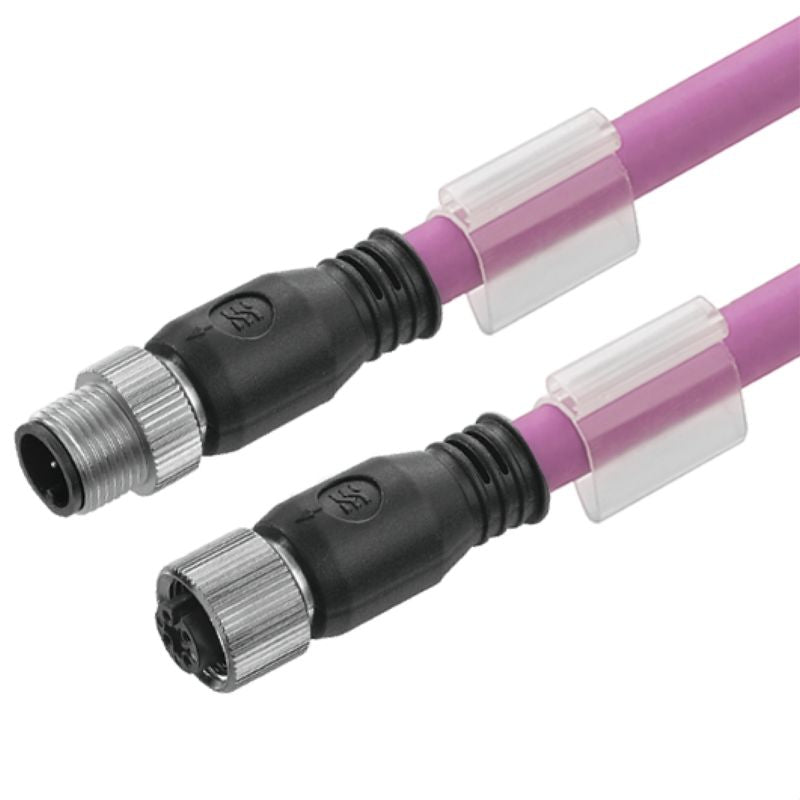

1060131000 - 10m Shielded M12 Connecting Cable with 5 Poles

1060131000 - 10m Shielded M12 Connecting Cable with 5 Poles

SKU: SKU: 1060131000   Download PDF

Select a Variant:
  • 1060131000 - 10m Shielded M12 Connecting Cable with 5 Poles
Qty:
Regular price Now $71.46   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $71.46 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M12GM12G-CD-10B, a robust 10-meter cable designed for M12 connections, featuring five poles This cable is well-equipped with shielding for enhanced performance and is constructed from halogen-free PVC material It meets RoHS compliance standards and boasts the UL certification number E307231, ensuring quality and safety for your installations.

Features and Benefits:

    •Output connectors type A-coded, in straight configurations.

    •Resistance to bending cycles up to 3 million times.

    •Contains a nominal current rating of 4A.

    •Temperature range for moving applications is from -10 to +80 °C, and for stationary use it's from -40 to +80 °C.

    •IP67 rated for protection against dust and water.

Specifications:

 Cable length 10 m
 Outer diameter 7 mm ± 0.3 mm
 Insulation PVC
 Number of poles 5
 Nominal voltage 125 V
 Nominal current 4 A
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Plug type M12, A-coded, IP67
 Protection degree IP67
 Plugging cycles ≥ 100
 Temperature range of housing -25…+80 °C
 Wire cross section 2 x 0.34 mm² + 2 x 0.22 mm²
