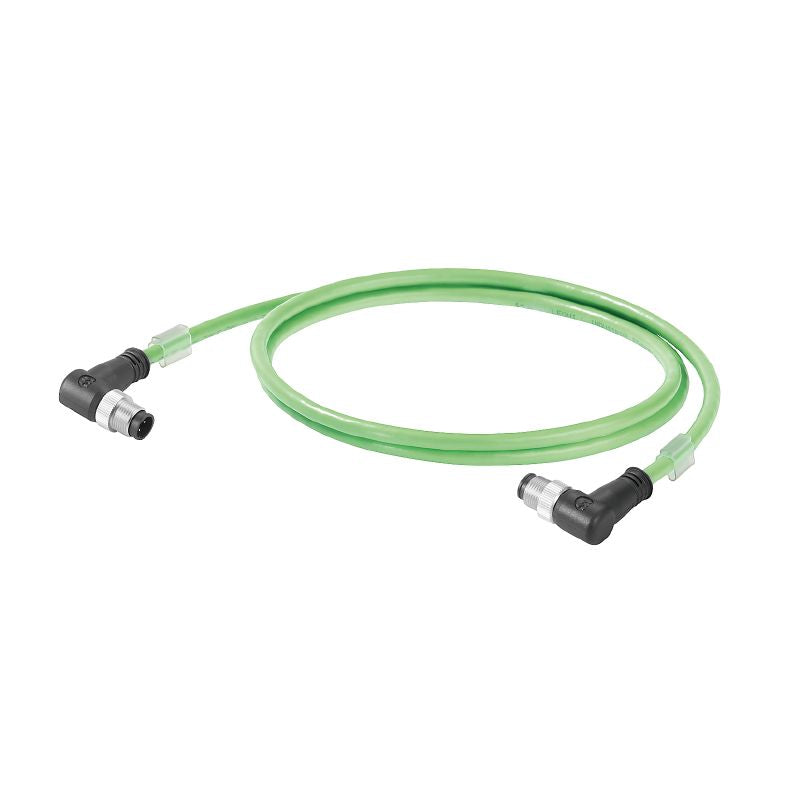

1059890020 - 2m PROFINET Dragline Cable with IP67 M12 D-code Connectors

1059890020 - 2m PROFINET Dragline Cable with IP67 M12 D-code Connectors

SKU: 1059890020   Download PDF

Select a Variant:
  • 1059890020 - 2m PROFINET Dragline Cable with IP67 M12 D-code Connectors
Qty:
Now $55.54   Web pricing policy
BEFORE   $0.00 Now $55.54 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a robust dragline cable optimized for PROFINET applications, featuring highly durable M12 D-code connectors that are securely rated at IP 67 This cable adheres to both Cat5 and Cat5e standards, ensuring reliable performance in various environments Crafted from resilient PUR material, it spans a convenient length of 2 meters, making it perfect for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS directives.

    •Very good abrasion resistance.

    •UV-resistant and halogen-free.

    •Operating temperature range of -40 °C to 70 °C.

    •Excellent mechanical properties, allowing for high bending cycles.

    •Secure installation with minimal bending radius.

    •Automation technology.

    •Industrial environments requiring a dragline cable with flexibility.

Specifications:

 Length 2 m
 Diameter of inner sheathing 3.9 mm
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Wire core insulation thickness 0.38 mm
 Operational voltage 600 V
 Capacity at 1 kHz 52 nF/km
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Shielding SF/UTP
