1059890003 - 0.3m IP67 PROFINET Dragline Cable with M12 D-Coded Connectors

SKU: SKU: 1059890003 Download PDF

Select a Variant:

1059890003 - 0.3m IP67 PROFINET Dragline Cable with M12 D-Coded Connectors

SET THE QTY:

Now $46.78 Web pricing policy

~~BEFORE $0.00~~ Now $46.78 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

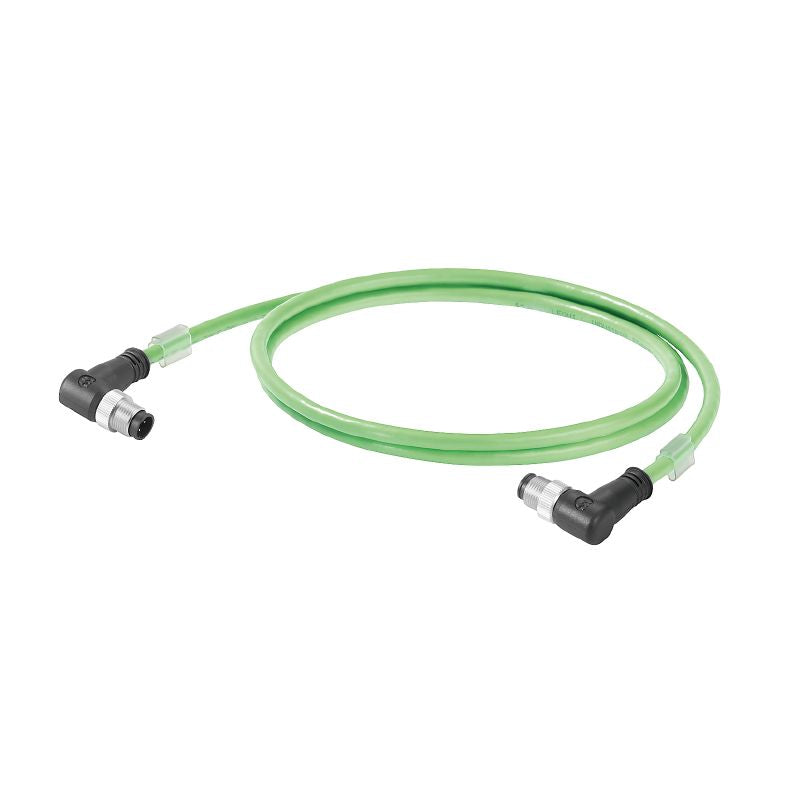

Introducing our specialized dragline cable, tailored specifically for PROFINET applications This cable is equipped with M12 D-coded angled plugs on both ends, boasting an IP67 rating for exceptional durability and protection against dust and water Meeting Category 5 standards according to ISO/IEC 11801 and TIA T568-B specifications, it guarantees reliable performance With a length of 03 meters, its robust PUR insulation provides excellent flexibility and resistance, making it a practical choice for various industrial setups.

Features and Benefits:

•IP67 protection rating for dust and water resistance.

•Constructed with durable PUR materials.

•Compliant with RoHS.

•Contains halogen-free materials.

•Suitable for various environmental conditions.

Specifications:

Length	0.3 m
Net weight	44 g
Storage temperature	-50 °C to 70 °C
Operating temperature	-40 °C to 70 °C
Installation temperature	-20 °C to 60 °C
Standards	{'Standard, insulating material': 'DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)', 'Standard, shielding material': 'DIN EN 13602 Cu-ETP-A..B', 'Standard, wire material': 'DIN EN 13602 Cu-ETP-A'}

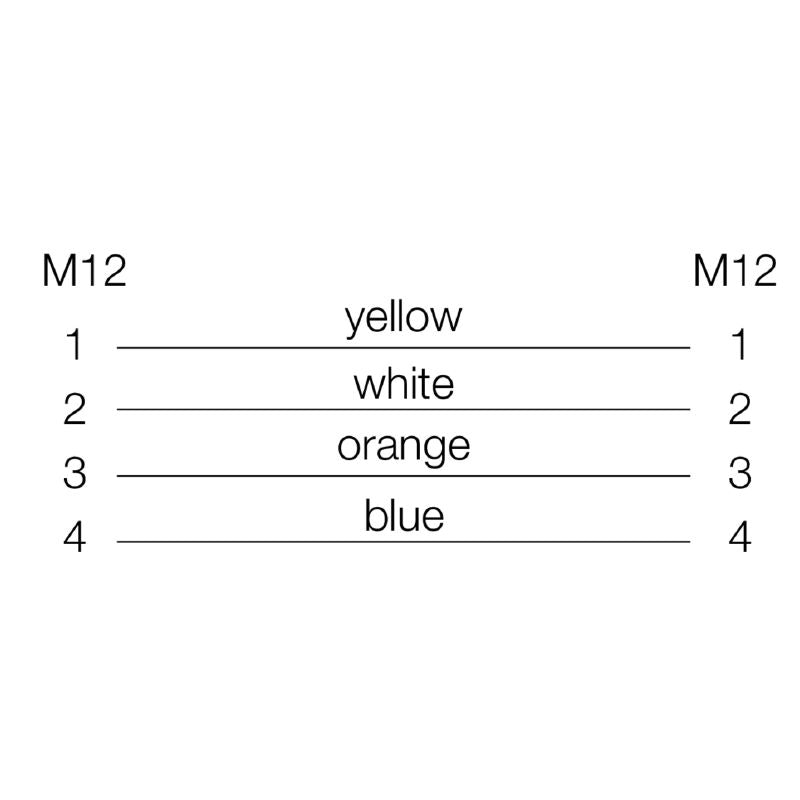

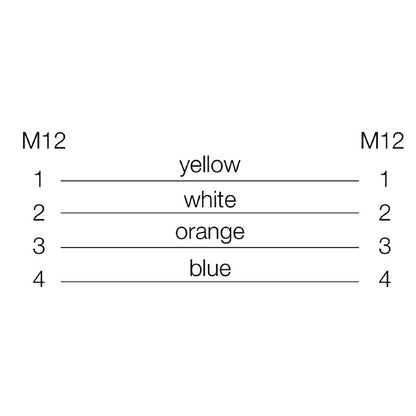

Cable structure	{'Arrangement of wire cores': 'Star-quad', 'Colour sequence or wires - wire pairs': 'white, yellow, blue, orange', 'Cross-section': '4*AWG 22/7 - 0.32 mm²', 'Insulation': 'PE', 'Material sheath': 'PUR'}
Electrical properties	{'Category': 'Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)', 'Operating voltage (UL rating)': '600 V', 'Characteristic impedance': '100 ± 15 Ω at 1–100 MHz', 'Loop resistance': '120 Ω/km', 'Signal propagation time': '5.3 ns/m', 'Speed': '180 m/min'}
Mechanical and material properties	{'Abrasion resistance': 'very good', 'Min. bending radius, once only': '5 x cable diameter', 'Pulling force': '≤ 150 N', 'Resistance to oils': 'in accordance with IEC 60811-2-1', 'UV-resistant': 'Yes'}
