1059770020 - 2m PROFINET Dragline Cable with M12 IP67 Connectors

1059770020 - 2m PROFINET Dragline Cable with M12 IP67 Connectors

SKU: 1059770020 Download PDF

Variant:
  • 1059770020 - 2m PROFINET Dragline Cable with M12 IP67 Connectors
Now $55.51
BEFORE   $0.00 Now $55.51
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

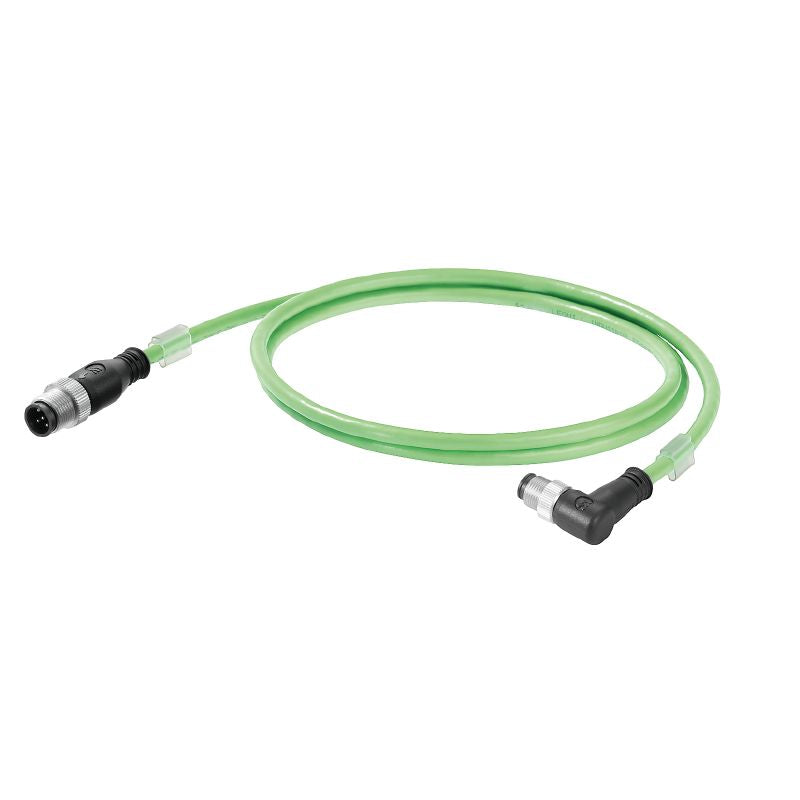

Introducing a versatile dragline cable engineered for PROFINET applications, available with M12 D-coded connectors in both straight and angled designs This robust cable boasts an IP67 rating, ensuring resistance to water and dust It adheres to Cat5 and Cat5e standards as outlined by ISO/IEC 11801 and TIA T568-B, making it a reliable choice for various networking needs Constructed with high-quality PUR material, this cable offers a length of 2 meters, providing flexibility and performance in your connectivity solutions.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •Robust design suited for harsh environments with IP67 rating.

    •High abrasion resistance and UV resistance.

    •Halogen-free construction following IEC standards.

Specifications:

 Length 2 m
 Storage temperature -50 °C...70 °C
 Operating temperature -40 °C...70 °C
 Installation temperature -20 °C...60 °C
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, shielding material DIN EN 13602 Cu-ETP-A..B
 Standard, wire material DIN EN 13602 Cu-ETP-A
 Arrangement of wire cores Star-quad
 Complete shielding Aluminium foil
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Diameter of inner sheathing 3.9 mm
 Insulation PE
 Insulation cross-section 1.5 mm
 Number of wires 4
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Sheathing material thickness 0.9 mm
 Shielding SF/UTP
 Wire core insulation thickness 0.38 mm
 Wire material Stranded tin-plated copper wire
 Capacity at 1 kHz 52 nF/km
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 40 ns/100m
 Loop resistance 120 Ω/km
 Operating voltage (UL rating) 600 V
 Resistance differential 3 %
 Speed 180 m/min
 Bending cycles 3 Mio
 Pulling force ≤ 150 N
 UV-resistant Yes
