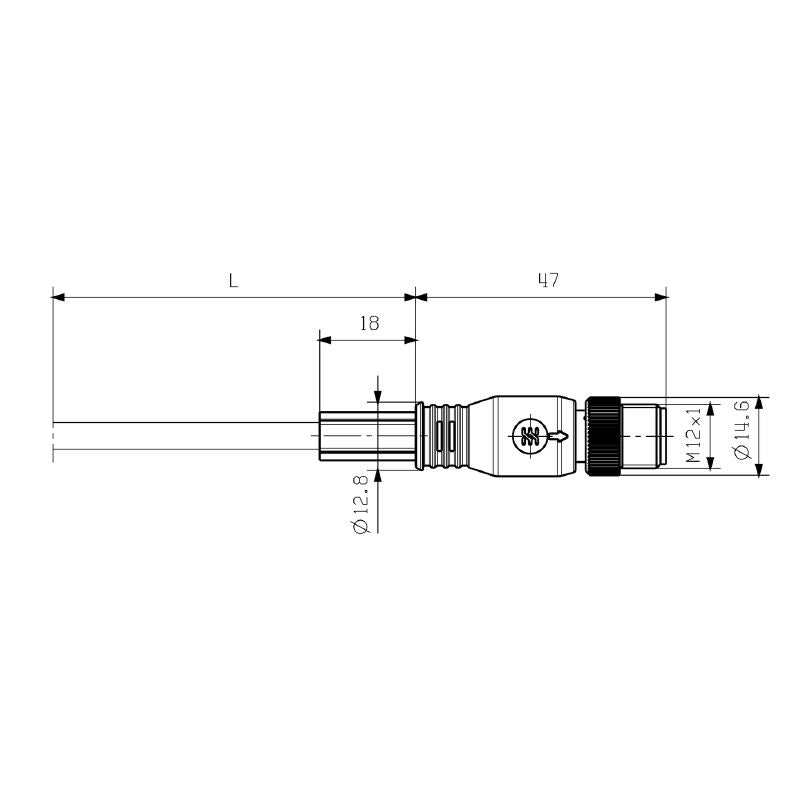

1044470015 - 1.5m Dragline Cable, PROFINET M12 D-code to RJ45

1044470015 - 1.5m Dragline Cable, PROFINET M12 D-code to RJ45

SKU: 1044470015   Download PDF

Select a Variant:
  • 1044470015 - 1.5m Dragline Cable, PROFINET M12 D-code to RJ45
Qty:
Now $58.70   Web pricing policy
BEFORE   $0.00 Now $58.70 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a versatile 15 m Dragline cable designed to meet PROFINET standards This cable is equipped with an M12 D-code connector on one end, rated IP 67 for water and dust resistance, while the other end features an RJ45 connector rated IP 20 It adheres to both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, ensuring excellent performance and connectivity The durable PUR sheath provides additional protection, making it suitable for demanding environments.

Features and Benefits:

    •Compliant with RoHS regulations and has an exemption status.

    •Operates in a wide temperature range from -40 °C to 70 °C.

    •Halogen-free as per IEC 60754-2 standards.

    •Highly abrasion resistant and designed for high bending durability.

Specifications:

 Length 1.5 m
 Net weight 124 g
 Operating voltage 600 V
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Bending cycles 3 Mio
 Temperature range (Storage) -50 °C to 70 °C
 Temperature range (Operating) -40 °C to 70 °C
 Temperature range (Installation) -20 °C to 60 °C
 Shielding SF/UTP
 Sheath diameter (max) 6.7 mm
 Sheath diameter (min) 6.3 mm
 Number of wires 4
 Signal propagation time 5.3 ns/m
