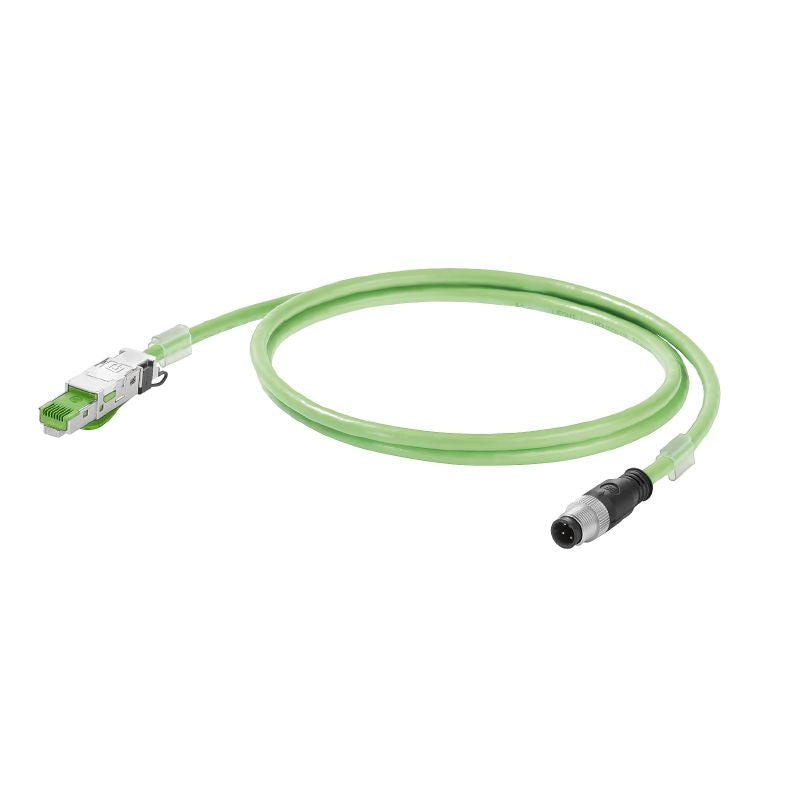

1044470010 - 1m Dragline Cable, M12 D-Code, IP67 & RJ45 Connector

SKU: SKU: 1044470010 Download PDF

Select a Variant:

1044470010 - 1m Dragline Cable, M12 D-Code, IP67 & RJ45 Connector

SET THE QTY:

Now $56.14 Web pricing policy

~~BEFORE $0.00~~ Now $56.14 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a high-performance dragline cable, specifically engineered for PROFINET applications This cable is equipped with an M12 D-code exhibiting a straight pin design with an IP67 rating, along with an RJ45 connector that holds an IP20 rating It complies with both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, ensuring reliable connectivity Measuring 1 meter in length, this cable is crafted from robust PUR material, offering excellent durability and flexibility for various industrial settings.

Features and Benefits:

•Complies with RoHS standards.

•Constructed from halogen-free materials according to IEC 60754-2.

•Excellent abrasion resistance.

•Designed to withstand high bending cycles.

Specifications:

Length	1 m
Operating temperature	-40 °C...70 °C
Storage temperature	-50 °C...70 °C
Cross-section	4*AWG 22/7 - 0.32 mm²
Capacity at 1 kHz	52 nF/km
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Loop resistance	120 Ω/km
Operating voltage (UL rating)	600 V
Signal propagation time	5.3 ns/m
Shell diameter, max	6.7 mm
Shell diameter, min	6.3 mm
Number of wires	4
Bending cycles	3 Mio
Pulling force	≤ 150 N
Resistance to oils	in accordance with IEC 60811-2-1
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	7.5 x cable diameter
