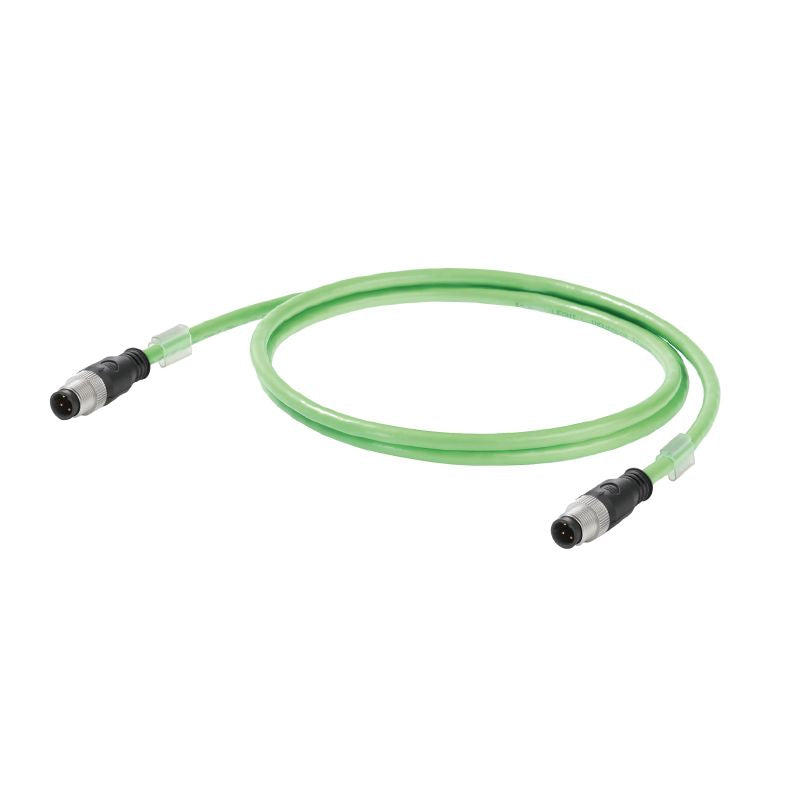

1025950350 - 35m PROFINET Dragline Cable with M12 D-code, Cat.5

1025950350 - 35m PROFINET Dragline Cable with M12 D-code, Cat.5

SKU: 1025950350   Download PDF

Select a Variant:
  • 1025950350 - 35m PROFINET Dragline Cable with M12 D-code, Cat.5
Qty:
Now $225.93   Web pricing policy
BEFORE   $0.00 Now $225.93 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Elevate your connectivity with this dragline cable, featuring PROFINET compatibility thanks to M12 D-code straight pins at both ends Compliant with Cat5 and Cat5e standards, this cable has a generous length of 35 meters and is constructed from durable PUR material, making it ideal for a wide range of industrial uses.

Features and Benefits:

    •Compliant with RoHS and supports environmental standards.

    •Very good abrasion resistance.

    •Halogen-free and silicone-free, in line with specific industry standards.

    •UV-resistant properties enhance outdoor durability.

    •Robust against oil, flame, and bending.

Specifications:

 Length: 35 m
 Diameter of inner sheathing: 3.9 mm
 Sheath diameter, max: 6.7 mm
 Sheath diameter, min: 6.3 mm
 Operating voltage: 600 V
 Category: Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Characteristic impedance: 100 ± 15 Ω at 1–100 MHz
 Capacity at 1 kHz: 52 nF/km
 Signal propagation time: 5.3 ns/m
 Loop resistance: 120 Ω/km
 Transfer impedance: 20 mΩ/m at 10 MHz
 Bending cycles: 3 Mio
 Min. bending radius, once only: 5 x cable diameter
 Min. bending radius, repetitive: 7.5 x cable diameter
 Pulling force: ≤ 150 N
 Test voltage: wire-wire-shield: 2000 V
 Weight: 1,943.92 g
